Fiber In A Box- AFL Fiber In A Box -Berktek Fiber In A Box- Wholesale Fiber Optic Cable In A Bo-, Fiber Optic Cable In A Box- Fiber ina box
We Carry The AFL Fiber In Box & Berktek Fiber In Box-Berktek Click Here

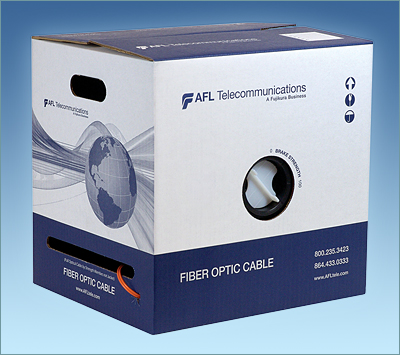

AFL's Fiber In A Box- A New Concept Of Shipping Fiber Optic Cable In A Box
American Tele Data now carries AFL's Fiber in A Box family of products in all our distribution centers. If you require Berktek Fiber In A Box, we can also provide you a quotation. There are several varieties of Fiber In A Box solutions to offer contractor and end user- so call first to see if your fiber optic cable needs can be shipped to you in a box.
Your fiber optic cable comes complete and secure in the handy efficient box along with AFL's unique and industry leading 'brake strength" gearing. If you need to tighten or loosen the rate of "pulling" of the fiber optic cable- - all you ned to do is turn the dial to add or loosen the rate of fiber cable.
solution offers contractors light weight, easy to use cable packaging with “out of the box” disbursement of fiber cable. No reel supports or pay-off’s are required. Simply set the box down in a convenient place, unlock the built-in braking mechanism and begin pulling. Adjust the braking mechanism to apply the amount of pulling tension required. Stack and configure boxes together to disburse cable from several reels at the same time. Available in 1000, 2000 and 3000 foot lengths, this unique cable package solution will save contractors valuable time and cost. American Tele Data offers raceway system solutions and cable tray systems from several manufacturer's including our new Snake Tray raceway systems and cable trays featured above, Cable Manager cable tray, and Cablofil raceway, cable tray and raceway systems, Hendry raceway , Newton, DEK raceways, ICC standard raceways, and ICC's custom Raceway System Solutions ICC's raceway structured cabling solutions offer flexibility and ease of installation. Each component is skillfully engineered and crafted to provide a clean and secure system that fits virtually any open architectural environment. See all our raceway solutions below.
West Coast (866) FIBER-21 --(866) 342-3721- East Coast (866) 650-3282
Fiber Optic Cable In A Box Features:
• |
Light weight and easy to transport with grips on both sides of the box for easy handling |
• |
Eliminates the need for reel supports and cable spooling equipment |
• |
Unique braking mechanism allows reel to be locked in place within carton during transport and provides control of tension during cable pulls |
• |
Boxes can be stacked and configured to support easy pay-off of multiple cable runs at the same time |
• |
Print under feed-through slot in box reminds installers of proper pulling methods for optical cable |
• |
Factory packaging ensures that cable is not potentially “over-stressed” in non-factory cable cutting operations where personnel may not be as sensitive to proper handling of fiber optic cable |
• |
Available in 1000, 2000 and 3000 feet lengths, depending on cable diameter |
• |
Easy access to reel from top of box allows installers to access reel and repackage excess cable removed from box |
• |
Easy way to organize, store and manage short lengths of excess cable |
|
|
|
|
|
Fiber-In-A-Box, boxed fiber cable |
|
AFL’s “Fiber-In-A-Box” solution offers contractors light weight, easy to use cable packaging with “out of the box” disbursement of fiber cable. No reel supports or pay-off’s are required. Simply set the box down in a convenient place, unlock the built-in braking mechanism and begin pulling. Adjust the braking mechanism to apply the amount of pulling tension required. Stack and configure boxes together to disburse cable from several reels at the same time. Available in 1000, 2000 and 3000 foot lengths, this unique cable package solution will save contractors valuable time and cost. |
|
Features:
• |
Light weight and easy to transport with grips on both sides of the box for easy handling |
• |
Eliminates the need for reel supports and cable spooling equipment |
• |
Unique braking mechanism allows reel to be locked in place within carton during transport and provides control of tension during cable pulls |
• |
Boxes can be stacked and configured to support easy pay-off of multiple cable runs at the same time |
• |
Print under feed-through slot in box reminds installers of proper pulling methods for optical cable |
• |
Factory packaging ensures that cable is not potentially “over-stressed” in non-factory cable cutting operations where personnel may not be as sensitive to proper handling of fiber optic cable |
• |
Available in 1000, 2000 and 3000 feet lengths, depending on cable diameter |
• |
Easy access to reel from top of box allows installers to access reel and repackage excess cable removed from box |
• |
Easy way to organize, store and manage short lengths of excess cable |
Applications:
• |
Horizontal cabling / Fiber-to-the-Desk |
• |
Fiber Drops within MDU’s |
• |
Short to medium length cable runs between buildings |
|
|
|
Stackable for easy pay-off |
|
Light weight & easy to transport |
Specifications & Ordering Information:
Add suffix “-XMFBOX” to part number to specify “Fiber-In-A-Box” solution where X indicates wildcard for length of the cable in thousands of feet (1, 2, or 3).
Cables that can be purchased with AFL’s “Fiber-In-A-Box” packaging solution include:
Fiber Count |
Cable Type |
MF
(Thousands of Feet) |
1 |
Simplex, 3mm |
1, 2, 3 |
2 |
Zipcord, 3mm |
1, 2 |
2 |
Dual-Link (Round), 4.8mm |
1 |
4 |
Quad-Link |
1 |
6, 8, 12 |
Circular Premise Cable |
1 |
2, 4, 6 |
Indoor/Outdoor Tight Buffered Cable
(Plenum or Riser) |
1 |
2 |
High Impact Indoor Cable |
2 |
4, 6, 8, 12 |
High Impact Indoor Cable |
1 |
Fiber Count |
Cable Type |
Indoor |
Indoor/Outdoor |
Fiber Type |
Quantity Per Box |
|
|
Riser |
Plenum |
Riser |
Plenum |
|
|
2 |
Zipcord |
Zipcord, 3mm |
1, 2 |
|
|
|
|
4 |
QUAD-Link |
Dual-Link (Round), 4.8mm |
1 |
|
|
|
|
6 |
CPC |
Quad-Link |
1 |
|
|
|
|
12 |
CPC |
Circular Premise Cable |
1 |
|
|
|
|
2 |
Zipcord |
Indoor/Outdoor Tight Buffered Cable
(Plenum or Riser) |
1 |
|
|
|
|
4 |
QUAD-Link |
High Impact Indoor Cable |
2 |
|
|
|
|
6 |
CPC |
High Impact Indoor Cable |
1 |
|
|
|
|
12 |
CPC |
|
|
|
|
|
|
2 |
Zipcord |
|
|
|
|
|
|
4 |
QUAD-Link |
|
|
|
|
|
|
6 |
CPC |
|
|
|
|
|
|
12 |
CPC |
View PDF |
|
|
|
|
|
|
|
|
|
|
