Innerduct-High Density Polyethlene Duct- Outside Plant Innerduct - HDPE - OSP -Plenum Innerduct- Corrugated Innerduct- Corrugated HDPE - Riser Rated Innerduct - Outside Plant Conduit - Fiber Optic duct -Pre- Installed Fiber In Duct

Live Support by Citricle

See Innerduct Pricing Below ----Pull Tape----Plenum Innerduct

American Tele Data stocks innerduct and ships most innerduct in the USA the same day and specializes in fast turnaraound for all Innerduct and Raceway Products including standard innerduct, Plenum Innerduct, High Density Polyethlene Duct, and Outside Plant Innerduct. American Tele Data carries a complete line os OSP Duct ,Plenum Innerduct,Corrugated Innerduct, Corrugated HDPE, Riser Rated Innerduct, Outside Plant Conduit, Fiber Optic duct and our custom Pre-Installed Fiber In Duct. ATD's HDPE innerduct is available in sizes ranging from 1/2" to 6" inches in diameter with several SDR or HDPE innerduct wall thickness. American Tele Data stocks many sizes of innerduct and can ship most innerduct orders including custom- including colored innerduct within 48 hours. Our corrugated HDPE innerduct/duct is manufactured from High Density Polyethylene (HDPE) and is intended to be placed inside of existing duct. Our corrugated innerduct is ideal for pulls under 1000 ft. and is designed to reduce surface contact when pulling cable. This lightweight product offers maximum flexibility, and allows for installation in small or restricted areas. Our Corrugated innerduct is available in 1" and 1 1/4". The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available.

We are now QUOTING & Shipping 1"-2"-3"-4" HDPE Innerduct



Duraline MultiCell Innerduct

Optiroad MultiCell Innerduct

Maxcell Multicell Innerduct



PVC INNERDUCT: American Tele Data now carries a complete line of PVC innerduct as well.-Call For Info. Also much of our new 2 inch- 3 inch and 4" HDPE innerduct is now in stock. All Schedule 40. 80 and related duct hipped from Ohio, Texas, Tampa, FL and Utah. PVC Duct

Black UV Rated Innerduct- UV Rated Innerduct

THE BELOW PRICES ARE TYPICAL SUGGESTED PRICES- DUE TO THE PRICE OF OIL- THE PRICES CAN FLUCTUATE DAILY-PLEASE CALL (866) 342-3721 FOR UP TO DATE PRICING- WE TRY AND SHIP COILED 250 FOOT AND 500 FOOT PLENUM INNERDUCT SAME DAY!

Call us for a quote at (866) 342-3721

We are now QUOTING & Shipping HDPE 1"-2"-3"-4" HDPE Innerduct:

West Coast (866) FIBER-21 which is 342-3721 East Coast (866) 650DATA which is 650-3282

American Tele Data is an active CCR registered supplier for the United States Government

New SnakeTube Snake Tube Fire Resistant Duct! Up to 900 Degrees for 3 hours! As strong as steel yet as pliable as PVC, Snake Tube comes in 300 foot lengths for ultra-fire resistant environments. Specially designed for control cables, ships, communication-control situiations where if a fire breaks out- the cables inside will not melt and you will be able to get data through the firestorm and get people out safely and in time

We Can Ship the Same Day! Many Colors Available
We specialize in custom lengths of innerduct- call for innerduct pricing today at (866) 342-3721

Manufactured to ASTM D2447, ASTM D3035, ASTM D3485, ASTM D2239 and NEMA TC7 Specifications.

Standard colors include black, gray, red, white, blue, yellow, green, orange and terra cotta. Custom colors available on request.
Other options include embedded stripes, sequential marking and Cable-In-Conduit.

Multicell Installations: American Tele Data Now carries Multicell Innerduct from Optiroad. After years of multicell innerduct and multicell duct proptypes and trials including Foduct which we introduced in California in 1993, Optiroad has designed a flexible, extremely rugged multicell innerdcut system to fit most underground fiber to the home -FTTX- FTTH and multi-fiber requirements to effectively and efficiently reduce the time and effort to install rady to use innerduct. Due to its rugged and sealed nature of the design Optiroad allows the removing and blowing of tape to install fiber cables of larger nature at a later date. COD also facilitates easy insertion of cables up to the maximum-coiled length owing to perfect alignment of inner ducts and less friction, as it has no connections.

OPTIROAD Multi-Cell Innerduct

Multicell Innerduct Now American Tele Data introduces the world's most advanced multi-cell innerduct ideal for multiple fiber cable runs and ease of installation. Optiroad multicell innerduct has been used internationally for over 10 years with huge success for standard multiple fiber cable runs along with FTTH-FTTX fiber cable innerduct installations. Optiroad innerduct is also designed for earthquake resist as Optiroad innerduct has been proven safe in Earthquake and Land Subsidence owing to its strong compressive load and flexibility. Multicell Innerduct Information

SMOOTHWALL INNERDUCT- Click for more on complete specifications

Smoothwall Innerduct- 1/2" TO 6" Innerduct Diameter Sizes

Click for more on complete specifications

SMOOTHWALL INNERDUCTHigh Density Polyethylene Duct from PNA has been tested and proven under the most severe conditions. From extreme temperatures to abrasive and high tension applications in underground installations. HDPE from PNA provides quality service and economy in a wide range of uses. As a smooth and flexible duct for cable, HDPE is unequaled for ease of installation and continuous strength.



Sizes Available
13mm 1/2" 3/4" 1" 1-1/8" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6"

Click for more on complete specifications



American Tele Data also carries HDPE innderduct-high density polyethylene innerduct in sizes ranging from 1/2" to 6" and is available in a multitude of colors. Smooth wall is the standard High Density Polyethylene (HDPE) Duct. The interior of smooth wall has a glass-like finish which delivers the lowest coefficient of friction of all available non-lubricated innerducts. Our smooth wall innerduct is a durable high quality product for direct burial applications.The sizes below are from 1" to 4" and many below are in STOCK

Reel Size Color Part No. Wall Outside Dimension Inside Dimension Max Pull Tension Reel Size Length
1" Black SW-100-SDR11-7000 SDR 11 1.315 1.075 950 72-45-24 7000
1" Black SW-100-SDR13.5-1800 SDR 13.5 1.315 1.121 790 48-30-24 1800
1" Black SW-100-SDR13.5-7000 SDR 13.5 1.315 1.121 790 72-45-24 7000
1 1/4" Black SW-125-SDR11-5000 SDR 11 1.660 1.358 1520 82-45-30 5000
1 1/4" Black SW-125-13.5-2500 SDR 13.5 1.660 1.414 1260 66-45-30 2500
1 1/4" Black SW-125-13.5-5000 SDR 13.5 1.660 1.414 1260 82-45-30 5000
1 1/4" Black SW-125-13.5-8000 SDR 13.5 1.660 1.414 1260 96-45-32 8000
1 1/2" Black SW-150-SDR11-5000 SDR 11 1.900 1.554 760 96-45-32 5000
1 1/2" Black SW150-SDR13.5-5000- SDR 13.5 1.900 1.618 1455 96-45-32 5000
1 1/2" Black SW-150-SDR11.5-2500 SDR13.5 1.900 1.618 1455 96-45-32 2500
2" Black SW-200-SCH40-2500 SCH 40 2.375 2.067 2300 82-45-40 2500
2" Black SW-200-SCH80-2500 SCH 80 2.375 1.939 3140 82-45-40 2500
2" Black SW-SDR11-4000 SDR 11 2.375 1.943 3105 96-45-32 4000
2" Black SW-SDR13.5-4000 SDR 13.5 2.375 2.023 2580 96-45-32 4000
3" Black SW-SDR13.5-1000 SDR 11 3.500 2.982 5590 96-45-68 1000
4" Black SW-400-SDR11-766 SDR 11 4.500 3.682 11145 102-45-68 766
4" Black SW-400-SDR13.5-766 SDR13.5 4.500 3.834 9250 102-45-68 766
• Made from tough High Density Polyethylene (HDPE).
• Flexible and can be worked easily in tight areas.
• Excellent low temperature properties.
• Superior resistance to natural or mechanical damage.
• Available with sequential markings in feet or meters.• Smoothwall is available with SILICORE® Super Slick Permanent Lining.
Ribbed
Corrugated
Figure 8
Aerial
Piggyback
Pinpoint
Cablecon
Plenum (Fire Jacket)
Microduct
Accessories

Ribbed Smoothwall Innerduct-Ribbed Smmothwall Innerduct-Ribbed Smoothwall Innerduct

Ribbed Smoothwall InnerductFor specialized installation of underground cable, including fiber optics, Petro-Rib™ duct provides superior friction reduction and flexibility. Manufactured from quality High Density Polyethylene resin, Petro-Rib™ offers maximum strength and adaptability on long pulls with numerous turns and elevation changes. PetroRib™ also affords superior pulling ease and lubrication effectiveness when installed with ProPull™

All PetroDuct™ is available pre-lubed, with pulling rope pre-installed; and in other sizes and lengths as a special order.  Joints are available in all sizes.



Sizes Available
13mm 1/2" 3/4" 1" 1-1/8" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6"

Colors Available
Blue, Orange, Black, Green, Gray, Red, Yellow, White, Terra Cotta.


American Tele Data also carries Ribbed wall innerduct which innerduct is designed to allow extremely long cable pulls to glide through the interior raised ribs. All ribbed wall innerduct is internally ribbed and available in any SDR and SIDR rating.

CORRUGATED INNERDUCT - CORRUGATED INNERDUCT-CORRUGATED INNERDUCT

For specialized installation of underground cable, PetroDuct™ Corrugated Duct provides excellent friction reduction and superior flexibility. Manufactured from quality High Density Polyethylene, PetroDuct™ Corrugated Duct offers maximum flexibility in tight turns combined with light weight and superior economy. Corrugated PetroDuct™ affords maximum pulling ease and lubrication effectiveness when installed with ProPull™

All PetroDuct™ is available pre-lubed, with pulling rope pre-installed; and in other sizes and lengths as a special order.  Joints are available in all sizes.



Sizes Available
1", 1-1/4", 1-1/2", 2"

Colors Available
Blue, Orange, Black, Green, Gray, Red, Yellow, White, Terra Cotta.


Standard Specifications for Corrugated Innerduct

PetroDuct™

Corrugated Duct
We offer all corrugated HDPE ranging from 1” to 2” in diameter.

Product Part #

SDR/SCH Rating

Nominal O.D.

Min I.D.

Min Wall

Max Wall

Weight lbs/ft.

Mean Density

Mean Wall

PC100

N/A

1.300

1.000

0.50

0.080

0.1051

0.950

0.066

PC100-FR

N/A

1.300

1.000

0.50

0.080

0.1051

0.950

0.066

PC100-PL

N/A

1.300

1.000

0.014

0.034

0.1001

0.950

0.024

PC125

N/A

1.540

1.250

0.50

0.080

0.1502

0.950

0.060

PC125-FR

N/A

1.540

1.250

0.50

0.080

0.1502

0.950

0.060

PC125-PL

N/A

1.540

1.250

0.017

0.031

0.1450

0.950

0.024

PC200

N/A

2.315

2.000

0.030

0.050

0.1902

0.950

0.040

PC200-PL

N/A

2.375

2.00

0.015

0.035

0.2300

0.950

0.025

PC=Corrugated    PL=Plenum Rated    FR=Flame Retardant

Plenum Innerduct------

Sizes Available
1", 1-1/4", 1-1/2", 2"Colors Available
Orange-White.



We now offer offer UL LISTED 1", 1-1/4", 1-1/2", and 2" corrugated raceways made from Polyvinylidene Fluoride (PVDF), which meet or exceed all UL tests for PLENUM RATED installations.

  • Chemically inert to most acids, aliphatic and aromatic organic compounds, chlorinated solvents, alcohols, etc.
  • Excellent mechanical properties over a wide range of temperatures.
  • Abrasion resistance and relatively low coefficient of friction.
  • PNA uses a PVDF copolymer specially developed for wire and cable applications, which are very demanding with respect to fire resistance and smoke emissions.
  • NOTE: PNA Plenum rated ducts DO NOT eliminate the need for Plenum rated cables.
  • UL Listing NO. E182653

    All PetroDuct™ is available pre-lubed, with pulling rope pre-installed; and in other sizes and lengths as a special order.  Joints are available in all sizes.

Plenum Innerduct

Standard Specifications for Plenum-Rated PetroDuct™

Product Part #

SDR/SCH Rating

Nominal O.D.

Min I.D.

Min Wall

Max Wall

Weight lbs/ft.

Mean Density

Mean Wall

PC100

N/A

1.300

1.000

0.50

0.080

0.1051

0.950

0.066

PC100-FR

N/A

1.300

1.000

0.50

0.080

0.1051

0.950

0.066

PC100-PL

N/A

1.300

1.000

0.014

0.034

0.1001

0.950

0.024

PC125

N/A

1.540

1.250

0.50

0.080

0.1502

0.950

0.060

PC125-FR

N/A

1.540

1.250

0.50

0.080

0.1502

0.950

0.060

PC125-PL

N/A

1.540

1.250

0.017

0.031

0.1450

0.950

0.024

PC200

N/A

2.315

2.000

0.030

0.050

0.1902

0.950

0.040

PC200-PL

N/A

2.375

2.00

0.015

0.035

0.2300

0.950

0.025

PC=Corrugated    PL=Plenum Rated    FR=Flame Retardant

Plenum Innerduct- by Premier

1" & 1.25" Plenum Innerduct- Is In "RED"- Below-

[Prices do not include shipping, FOB point PA]
Plenum innerduct is offered in 1"and 11/4", with pre-installed pull tape for easy cable installation. The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available.American Tele Data provides turnaraound for corrugated innerduct by providing rapid shipping service that we have in stock including a complete Line of ETL verified Innerduct, plenum innerduct, fiber optic duct, conduit and raceway systems including Fiber Duct, Outside Plant Conduit, Plenum Innerduct, Riser Rated Innerduct, Toneable Duct, Corrugated Innerduct and more. Corrugated HDPE Premier Corrugated HDPE is manufactured from High Density Polyethylene (HDPE) and is intended to be placed inside of existing innerduct. Plenum innerduct is ideal for pulls under 1000 ft. and is designed to reduce surface contact when pulling cable. Our plenum innerduct is a flexible, non-metallic, corrugated raceway used for effective cable and fiber optic management within interior raceways.

-PLEASE CALL (866) 342-3721 FOR UP TO DATE PRICING-Pricing for 1" & 1.25" HDPE Innerduct *HDPE orders under 5000 ft subject to a $60.00 reel charge, Coil prices listed

Part No
Description
Ft
Price
P-100T-5000 1" Plenum Innerduct w/tape [REEL]
5000
Call
P-100T-1000 1" Plenum Innerduct w/tape [COIL]
1000
Call
P-100T-500 1" Plenum Innerduct w/tape [COIL]
500
Call
P-100T-250 1" Plenum Innerduct w/tape [COIL]
250
Call

P-125T-5000 1 ¼” Plenum Innerductw/tape [REEL]
5000
Call
P-125T-1000 1 ¼” Plenum Innerductw/tape [COIL]
1000
Call
P-125T-500 1 ¼” Plenum Innerductw/tape [COIL]
500
Call
P-125T-250 1 ¼” Plenum Innerductw/tape [COIL]
250
Call

FIRE RETARDANT INNERDUCT



Fire-Retardant (FR) in corrugated duct - Orange only. Fire-Retardant duct has been has been tested and is offered in the top class (UL94 V-O only.  Because the process of making Fire-Retardant duct eliminates UV protection, it must be installed safe from exposure to natural or any other UV light.

All PetroDuct™ is available pre-lubed, with pulling rope pre-installed; and in other sizes and lengths as a special order.  Joints are available in all sizes.



Sizes Available
1", 1-1/4", 1-1/2", 2"

Colors Available
Orange-White.


FIRE RETARDANT INNERDUCT SPECIFICATIONS

Standard Specifications for Corrugated PetroDuct™

Product Part #

SDR/SCH Rating

Nominal O.D.

Min I.D.

Min Wall

Max Wall

Weight lbs/ft.

Mean Density

Mean Wall

PC100

N/A

1.300

1.000

0.50

0.080

0.1051

0.950

0.066

PC100-FR

N/A

1.300

1.000

0.50

0.080

0.1051

0.950

0.066

PC100-PL

N/A

1.300

1.000

0.014

0.034

0.1001

0.950

0.024

PC125

N/A

1.540

1.250

0.50

0.080

0.1502

0.950

0.060

PC125-FR

N/A

1.540

1.250

0.50

0.080

0.1502

0.950

0.060

PC125-PL

N/A

1.540

1.250

0.017

0.031

0.1450

0.950

0.024

PC200

N/A

2.315

2.000

0.030

0.050

0.1902

0.950

0.040

PC200-PL

N/A

2.375

2.00

0.015

0.035

0.2300

0.950

0.025

PC=Corrugated    PL=Plenum Rated    FR=Flame Retardant

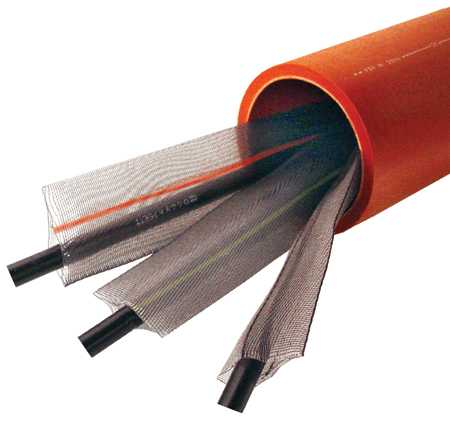

MAXCELL MULTICELL INNERDUCT

This Maxcell innerduct lightweight product offers maximum flexibility, and allows for installation in small or restricted areas. Our Corrugated innerduct is available in 1" and 1 1/4". The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available.American Tele Data now carries Maxcell's new fabric innerduct which is similar to the Maxcell fabric innerduct but has several major differences to the Maxcell innerduct product which will be covered below. Maxcell is the very popular fabric innerduct product that have successfully offered several advantages over standard HDPE especially offering up to 80% fill ratios over standard innerduct. Maxcell also has several differences over innerduct in the type of composite materials that it is manufactured from as well as the type of cellular structure.

New Maxcell Fabix Multicell Duct

We carry a complete line of innerduct including ribbed innerduct, pinpoint innerduct, plenum innerduct, figure 8 innerduct and more. Our High Density Polyethylene (HDPE) Innerduct is made of 100% Virgin Resin. The Innerduct can be manufactured in almost any color and has outstanding UV protection. Orange, Black, Red, Blue and Green are the most common conduit colors. We can provide multiple duct and colors on one reel to maximize space in a trench. All of our Innerduct is sequencally marked every foot and can be purchased with or without pull tape. The Innderduct has a silicore lining on the inside to prevent cable drag friction. SDR wall thicknesses are contingent on the type of projects projected. Schedule 40, SDR 15.5, SDR 13.5, SDR 11 and SDR 9 are all standard wall thickness.

NEW! Firestop Cable Transit Systems Snake Tray Cabletray-Raceway Systems

Innerduct CouplersInnerduct Couplers

Click On Below Links For Additional Innerduct Information

We specialize in custom lengths of innerduct- call for innerduct pricing today at (866) 342-3721 or click on the chat button at the top of the page to talk to one of our knowlegeable representatives.

Our Tracer wire innerduct provides a method of locating underground fiber optic cable. The tracer wire is a single copper wire co-extruded into the innerduct providing a corrosion resistant conductor. An alternative method of locating buried fiber optic cable is to use detectable tape, available pre-installed in any of our duct products.

American Tele Data Will NOT BE UNDERSOLD- Call Us Today For All Your Innerduct & Duct Needs -We Will Beat Any U.S. Based Price! Call us tollfree (866) 342-3721 or click on the chat button at the top of the page.

UL Listed-We Now Offer Pre- Installed Fiber Cable In Our Innerduct- Ask Us For Details- (866) 342-3721

American Tele Data can ship many HDPE innerduct and HDPE duct products the same day, however on special orders and colors please be advised that we require 7-10 days to process your innerduct order. Thank you.

1/2" TO 6" Innerduct Diameter Sizes Innerduct Couplers

Colors and Identification

  • Standard colors available in: white, black, blue, green, red, orange, lilac, grey, yellow, brown, buff, terra cotta.
  • Striping: Striping combinations are available in all colors in combinations of single, double, triple and quad stripes.

Other Identification

  • Innerduct size, SDR and sequential footage markings every 2’ are laser imprinted on every order.
  • Custom imprints such as company name, project name or any other special identification markings also available

Options

  • Lubrication
  • Up to four lengths/colors of innerduct per reel available laid in parallel or segmented on a reel.
  • Pre-installed pull tape, tracer tape
Smooth Wall Innerduct 1/2" to 6" Diameter

HDPE Smooth wall innerduct is the standard High Density Polyethylene (HDPE) Duct. The interior of smooth wall has a glass-like finish which delivers the lowest coefficient of friction of all available non-lubricated innerducts. Our smooth wall innerduct is a durable high quality product for direct burial applications.

HDPE Ribbed Wall Innerduct Smooth Wall Innerduct 1/2" to 6" Diameter

Our HDPE ribbed wall innerduct is designed to allow extremely long cable pulls to glide through the interior raised ribs. All ribbed wall innerduct is internally ribbed and available in any SDR and SIDR rating.

HDPE Tracer Wire Innerduct Smooth Wall Innerduct 1/2" to 6" Diameter

Tracer wire innerduct provide a method of locating underground fiber optic cable. The tracer wire is a single copper wire co-extruded into the innerduct providing a corrosion resistant conductor. An alternative method of locating buried fiber optic cable is to use detectable tape, available pre-installed in any of our duct products.

HDPE Figure 8 Duct Smooth Wall Innerduct 1/2" to 6" Diameter

Our figure 8 innerduct features a high tensile galvanized support strand for aerial placement of duct. The support strand is an integral component of the co-extruded duct.

Corrugated Duct
We offer all corrugated HDPE ranging from 1” to 2” in diameter.

AFL Loose Tube- Microcore Fiber Optic Cable Call For Pricing

American Tele Data carries the entire line of AFL Loose Tube Fiber Optic Cables

alcoa loose tube cable
America Tele Data carries the
MicroCore Cable
American Tele Data carries the entire line of AFL Microcore Cable simliar to Future Flex, the Sumitomo Air Blown Fiber Cable, which AFL's Microcore meets or exceeds Sumitomo's Future Flex Air Blown Fiber Cable, Air Blown Fiber Optic Cable, Fiber in Duct Cable. American Tele Data also carries Alcoa's ABF Cable, Air Blown Fiber Optic Cable,and entire line of Loose Tube Fiber Optic Cable. alcoa microcore
MicroCore® cable is an advanced fiber optic cable technology that allows maximum utilization of existing or future conduit systems with minimal initial investment. MicroTechnology is an innovative approach to deploying fiber optic cable topologies in underground cable networks for long distance, metropolitan, access, or FTTX type network applications.
 The basis of MicroTechnology is a special fiber optic cable system that includes MicroCore fiber optic cables, MicroDuct conduit systems and a special air blowing installation apparatus designed to blow the duct and cable into standard underground conduits from 3/4 inches to 3 inches in diameter. Changing or adding to your network is as simple as jetting new fiber optic cables through existing microducts that are part of your conduit system. That reduces up-front capital costs and allows you to build a network to the size you need it today, while providing the ability to easily expand future capacity.

Plenum (RED) Available at 1- 1/2" and HDPE (BLUE) Innerduct Available in 1/2" to 6" Sizes

We Carry A Complete Array of Innerduct Couplers

1" & 1.25" Plenum Innerduct- Is In "RED"- Below-

[Prices do not include shipping, FOB point PA]
Plenum innerduct is offered in 1"and 11/4", with pre-installed pull tape for easy cable installation. The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available.American Tele Data provides turnaraound for corrugated innerduct by providing rapid shipping service that we have in stock including a complete Line of ETL verified Innerduct, plenum innerduct, fiber optic duct, conduit and raceway systems including Fiber Duct, Outside Plant Conduit, Plenum Innerduct, Riser Rated Innerduct, Toneable Duct, Corrugated Innerduct and more. Corrugated HDPE Premier Corrugated HDPE is manufactured from High Density Polyethylene (HDPE) and is intended to be placed inside of existing innerduct. Plenum innerduct is ideal for pulls under 1000 ft. and is designed to reduce surface contact when pulling cable. Our plenum innerduct is a flexible, non-metallic, corrugated raceway used for effective cable and fiber optic management within interior raceways. Our Plenum duct is offered in 1" and 1 1/4", with pre-installed pull tape for easy cable installation. The standard color is orange and is offered in a variety of other colors. Sequential marked footage is tandard. Custom options, such as multiple colors per reel and Slit Duct, are also available.This lightweight product offers maximum flexibility, and allows for installation in small or restricted areas. Corrugated duct is available in 1" and 11/4". The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available.

-PLEASE CALL (866) 342-3721 FOR UP TO DATE PRICING-Pricing for 1" & 1.25" HDPE Innerduct *HDPE orders under 5000 ft subject to a $60.00 reel charge, Coil prices listed

Part No
Description
Ft
Price
P-100T-5000 1" Plenum Innerduct w/tape [REEL]
5000
Call
P-100T-1000 1" Plenum Innerduct w/tape [COIL]
1000
Call
P-100T-500 1" Plenum Innerduct w/tape [COIL]
500
Call
P-100T-250 1" Plenum Innerduct w/tape [COIL]
250
Call

P-125T-5000 1 ¼” Plenum Innerductw/tape [REEL]
5000
Call
P-125T-1000 1 ¼” Plenum Innerductw/tape [COIL]
1000
Call
P-125T-500 1 ¼” Plenum Innerductw/tape [COIL]
500
Call
P-125T-250 1 ¼” Plenum Innerductw/tape [COIL]
250
Call

Volume discounts always apply. Please call our sales offices to obtain custom quotes

Prices reflect COD and do not include shipping or processing fees.

Corrugated HDPE (High Density Polyethylene) Reel Dimensions
ETL verified

West Coast (866) FIBER-21 East Coast (866) 650-3282 for Latest Pricing or click on the chat button at the top of the page to talk to us.

Corrugated Innerduct Riser Reels

SIZE
Color
Part Number
Nominal ID (Inside)
Nominal OD (Outside)
Pull Tape
Reel Size
Reel Length (Feet)
1 inch
Orange
R-100T-2000
1.049"
1.365"
900 lb
44-36-21
2000 Feet
1 inch
Orange
R-100T-2800
1.049"
1.365"
900 lb
48-30-24
2800 Feet
1 inch
Orange
R-100T-5000
1.049"
1.365"
900 lb
66-41-24
5000 Feet
1 inch
Orange
R-100T-6000
1.049"
1.365"
900 lb
72-41-24
6000 Feet
1 inch
Orange
R-100T-9000
1.049"
1.365"
900 lb
82-41-24
9000 Feet
11/4"inch
Orange
R-125T-1000
1.25"
1.56"
900 lb
44-36-21
1000 Feet
1 1/4"
Orange
R-125T-1600
1.250"
1.56"
900 lb
48-30-24
1600 Feet
1 1/4"
Orange
R-125T-3400
1.250"
1.56"
900 lb
66-41-24
3400 Feet
1 1/4"
Orange
R-125T-4000
1.250"
1.56"
900 lb
72-41-24
4000 Feet
1 1/4"
Orange
R-125T-6000
1.250"
1.56"
900 lb
82-41-24
6000 Feet
1 1/2"
Orange
R-150T-1000
1.57"
1.80"
900 lb
48-30-24
1000 Feet
1 1/2"
Orange
R-150T-2500
1.57"
1.80"
900 lb
66-41-24
2500 Feet
1 1/2"
Orange
R-150T-3500
1.57"
1.80"
900 lb
72-41-24
3500 Feet
1 1/2"
Orange
R-150T-5000
1.57"
1.80"
900 lb
82-41-24
5000 Feet

Corrugated Innerduct Riser Coils

SIZE
Color
Part Number
Nominal ID (Inside)
Nominal OD (Outside)
Pull Tape
Coil Length
1 inch
Orange
R-100T-500
1.049"
1.35"
900 lb
500Ft
1 inch
Orange
R-100T-2800
1.049"
1.365"
900 lb
500Ft
1 inch
Orange
R-100T-5000
1.049"
1.365"
900 lb
350Ft

How to build a part number For Large Diameter Duct


Prefix

Size

Wall Thickness

Color

Stripes

Ribbed interior

Tape

BDI

06 = ½”

2 = SDR 9

OR = Orange

ORS =Orange Stripe

RI

T10 = 1000# tape



09 = ¾’

3 = SDR 11

BL = Blue

BLS = Blue Stripe



T12.5 = 1250# tape



11 = 1”

4 = SDR 13.5

BK = Black

BKS = Black Stripe



T18 = 1800 # tape



13 = 1 ¼”

5 = SCH 40

GR = Green

GRS = Green Stripe



T25 = 2500# tape



16 = 1 ½”

6 = SDR 15.5

RD = Red

RDS = Red Stripe



MT = 1250# detectable tape



21 = 2”

7 = SCH 80

YL = Yellow

YLS = Yellow Stripe




31 = 3”

8 = SDR 17

WH = White

WHS = White Stripe




41 = 4”



GY = Gray

GYS = Gray Stripe




51 = 5”



BR = Brown

BRS = Brown Stripe




61 = 6”



BF = Buff

BF = Buff Stripe




TC = Terra Cotta

TCS = Terra Cotta Stripe




LI = Lilac

LIS = Lilac Stripe

Duct Plugs

Blue Diamond duct plugs seal your conduit or innerduct from water, animals, debris or any other underground intrusion. Available in various sizes and models, duct plugs are designed for easy retrofitting and removal. Duct plugs help protect and seal occupied and unoccupied conduit and innerduct in an extensive range of applications.

American Tele Data is a supplier of Innerduct, OSP, HDPE, Riser Rated Innerduct, Plenum Innerduct, Corrugated duct, Outside Plant Conduit, Fiber Optic Duct, ETL Verified Conduit

Corrugated HDPE Premier Corrugated HDPE is manufactured from High Density Polyethylene (HDPE) and is intended to be placed inside of existing innerduct. It¹s ideal for pulls under 1000 ft. and is designed to reduce surface contact when pulling cable. This lightweight product offers maximum flexibility, and allows for installation in small or restricted areas. Corrugated duct is available in 1" and 11/4". The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available.

** Core rebates are available for reels broken down and returned to the manufacturer. Call our offices for details

Prices reflect COD and do not include shipping or processing fees. Please add a 3% minimum charge for all credit card orders.

Slit Duct-Endot Slit Duct-Slit Innerduct-Innerduct-Riser Rated Innerduct

ROCKAWAY, NJ - We also specialize in last minute rapid turnaround and delivery. our new corrugated slit duct is made of low-density polyethylene plastic for greater flexibility when joining and racking innerducts. Easy to use, it slides readily over fiber optic cable and inside innerduct. The slit duct is offered in 250-foot lengths that can be cut for application in the field. It is available in high-visibility orange in sizes from 1/2" ID through 2" ID.innerduct, corrugated inneduct, and plenum innerduct that is also ETL verified Innerduct, plenum innerduct, fiber optic duct, conduit and raceway systems including Fiber Duct, Outside Plant Conduit, Plenum Innerduct, Riser Rated Innerduct, Toneable Duct, Corrugated Innerduct and more. Corrugated HDPE Premier Corrugated HDPE is manufactured from High Density Polyethylene (HDPE) and is intended to be placed inside of existing innerduct.

Part Number Description Packaging List Price- Please Call For Discounts
ICS 050 41 01 02-250 1/2 " Corrugated Split Duct 250 Foot Coil
CALL
ICS 075 41 01 02-250 3/4" Corrugated Split Duct 250 Foot Coil
CALL
ICS 100 41 01 02-250 1" Corrugated Split Duct 250 Foot Coil
CALL
ICS 125 41 01 02-250 1 1/4" Corrugated Split Duct 250 Foot Coil
CALL
ICS 150 41 01 02-250 1" Corrugated Split Duct 250 Foot Coil
CALL
ICS 150 41 01 02-250 1" Corrugated Split Duct 250 Foot Coil
CALL

OurPlenum Innerduct Meets UL 910 & UL 2024- New 85% Fill Ratio Cable Guide!

American Tele Data also carries a complete line of plenum innerduct and plenum raceway products including Plenum Fiber Duct, Outside Plant Conduit, Plenum Innerduct, Riser Rated Innerduct, Corrugated Innerduct and more. Plenum Duct is a flexible, non-metallic, corrugated raceway used for effective cable and fiber optic management within interior raceways. Premier-Plenum meets UL-(910) standards for the National Electrical Code, Article 770, and satisfies UL-2024 standards for low smoke and flame propagation. Pur Plenum duct is offered in 1" and 1 1/4", with pre-installed pull tape for easy cable installation. The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available..

We can deliver a 500 Foot Reel of Innderduct to Most Locations In the United States For about $150.00 Per 500 Foot Coil Call Us Today at (866) 650-DATA

"Contractor Installed the wrong duct & fiber needs to be installed this weekend?

"Your local distributor has no duct in stock or has the wrong duct and needs it right away?"

"You have everything, the fiber cable, testers, jacks, but the duct- and you need it right away?"- We specialize in Rapid- 24- 48 Hour Turnaround

View PDF White Paper On Cable Guide here

Cable Guide fabric innerduct that is equivalent to Maxcell allows you to place the maximum number of cables in any type of conduit network structure. By taking the shape of the cables placed within, Cable Guide allows you to utilize up to 80% of available duct space-Click For Complete Information About Cable Guide Fabric Innerduct.

HDPE Innerduct Specifications Call For Latest Pricing (866) FIBER-21

HDPE Innerduct Specification

Looking for an alternative conduit source?

We offer superior quality conduit at competitive prices and immediate service.

Home | Cables | Switches | Contact Us | Our Team | Locations

Call Us Today Tollfree At (866) 342-3721 or (866) 650-DATA

Or Click On The Chat Button At The Top Of The Page To Talk To One Of Our Representatives

- 2010 All Rights Reserved -


































Underground Vaults
