Wholesale CAT 6 Cable- CAT 6 Cable

Wholesale Cable- Plenum CAT 6 Cable- PVC CAT6 Cable-Enhanced CAT 6 Cable- Category 5e Cable- Category 6 Cable- 4 Pair Plenum Cable- CAT 6 Cable- Outdoor Rated CAT 5e Cable- Smart Home Cable- Media Twist Cable- 350 MHZ UTP Cable

American Tele Data offers a wide variety of wholesale cat 6 cable including CAT 6 cable UTP twisted pair cables ranging from CAT 6 Plenum cable, CAT 6 Cable from Commscope's 5504M, Belden's Media Twist and Helix Hi Temps's equivalent's CAT 6 enhanced cables.We also have a full range of PVC CAT 6 rated cables, CAT 5e, outdoor rated CAT 5e cable, CAT 6, and CAT 6 Plenum enhanced, Smart Cable, and indoor/outdoor rated cable to suit your needs from several manufacturers. CommScope's CAT 6 cable offers unshielded twisted pair cable technology that is designed to serve the high speed local area network marketplace. CommScope's Network products are among the highest performing twisted pair products on the market. We have great pricing on Category 6 Enhanced -CAT 6 Cable equivalent to the Belden 7852A Cable for about 40% less. Please call us today at (866) 650-DATA.

American Tele Data Will Custom Cut Your OSP Cable and Connectorize Your Outside Plant Cable- and SHIP IT THE SAME DAY! ( for an additional cost)

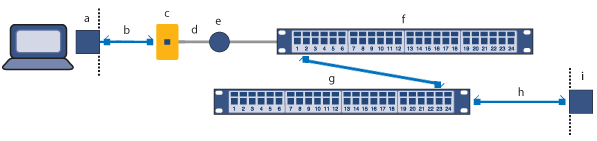

Category 6 (CAT 6) technology is rapidly growing in the telecommunications industry’s commercial market. CAT 6 has been under development since late 1997. Originally, the wiring was intended to go from the 100 MHz capability of CAT 5 to 200 MHz, but later that was revised to 250 MHz. CAT 6 provides for other metrics as well, variables that become important at high bandwidth rates. These include crosstalk, or interference between wire pairs, and skew, the difference in timing of signals on the wires.

a. Work Area Equipment
b. CAT 6 Patch Cord
c. CAT 6 Telecommunications Outlet/Connector
d. CAT 6 Cable
e. Transition or Consolidation Point (optional)
f. CAT 6 Patch Panel
g. CAT 6 Patch Cord Horizontal Cross-Connect
h. CAT 6 Patch Cord
 i. Telecommunications Room Equipment


CAT 6 is the latest type of four pair twisted copper cable designed for high speed data transmission. CAT 5 was initially touted as the last cable you'll ever need, but then came Gigabit Ethernet, which pushed the technology to its limits and used all four pairs of wires in the cable. So, manufacturers started making, "enhanced", versions of the cable (hence the "E”).

Bandwidth precedes data rates just as highways come before traffic. Doubling the bandwidth is like adding twice the number of lanes on a highway. The trends of the past and the predictions for the future indicate that data rates have been doubling every 18 months. Current applications running at 1 Gb/s are really pushing the limits of Category 5E cabling. As streaming media applications such as video and multi-media become increasingly commonplace, the demands for faster data rates will increase and spawn new applications that will benefit from the higher bandwidth offered by Category 6. This is exactly what happened in the early ’90s when the higher bandwidth of Category 5 cabling compared to Category 3 caused most local area network (LAN) applications to choose the better media to allow simpler, cost effective, higher speed LAN applications, such as 100BASE-TX. It is also important to note that cabling infrastructure is generally considered a 10 year investment as opposed to one or three years for electronics or software. There are several decisions to consider when specifying and designing a Category 6 (CAT 6) structured wiring system. In the end, the most important decision for every contractor and installer is that they must install a reliable system that achieves CAT 6 performance. CAT 6 component-rated structured wiring products are the best choice for a CAT 6 system.

We have CAT 6 Inserts as Low as $ 1.95 in quantities over 1000 pcs- Daily Specials as low as $ 2.49 each- Call Today (866-650-DATA

To achieve a component-rated CAT 6 system, every component of the system must be component compliant and backwards compatible. (see Figure 1) The modular connectors, patch panels, patch cords, and cable must be tested individually, and each must show their own test results to ensure that the system will meet TIA/EIA 568-B.2-1 CAT 6 standards. In addition, TIA specifies that each of the CAT 6 components must be backwards compatible. In order to achieve backwards compatibility, each component must be component compliant and will be able to work with lower category rated components. What this means is that mating a Category 6 patch panel with a Category 5e patch cord will result in Category 5e performance. And this means that mating a Category 6 patch panel with a Category 3 patch cord will result in Category 3 performance. The benefit for backwards compatibility allows the contractor and installer greater flexibility with an open architecture system, so they can easily change any component without the cost of changing the entire system. Another key benefit of backwards compatibility is vendor independence. Using different brands of CAT 6 products in one system gives contractors and installers greater flexibility when specifying and purchasing CAT 6 products. CAT 6 components being manufactured today must meet the requirements established by the Telecommunications Industry Association (TIA)–not only for CAT 6 performance compliance, but also for interoperability between different vendors’ products. A tuned system does have advantages and is proven to produce superior results.

If my installation is designed for CAT 6 link compliance, am I okay? Without a component compliant solution, the answer is no. Remember that CAT 6 link does not see the cross-connect, patch cords, and equipment cords. Patch cords are thought by many to be a primary weak link in any CAT 6 system. Once you add in patch cords, equipment cords and the cross-connect, your system may not achieve CAT 6 performance.

If my installation is designed for CAT 6 channel compliance, am I okay? Without a component compliant solution, the answer is yes, but if you change any of the components, modular connectors, patch panels, patch cords, or use a different brand of CAT 6 cable then your system may not achieve CAT 6 performance.



Are there any CAT 6 systems that are CAT 6 link, channel, and component compliant? Companies such as ICC offer, a component compliant CAT 6 system that meets today's demands for increased bandwidth and performance which exceeds requirements of ANSI/TIA/EIA-568-B.2-1. In addition, a family of tuned and performance matched connectors, patch panels, patch cords, and cable is essential if you want to deliver superior performance, quality and value for the complete CAT 6 end-to-end solution.

The CAT 6 channel test configuration is to be used by system designers and users of data communication systems to verfy the performance of the overall CAT 6 channel. The CAT 6 channel includes up to 90m (295 ft.) of CAT 6 horizontal cable, a CAT 6 patch cord, a CAT 6 telecommunications room. The total length of CAT 6 patch cords in the work area shall not exceed 10m (33 ft.). The connections to the equipment at each end of the channel are not included in the channel definition. The channel definition does not apply to those cases where the horizontal cabling is cross-connected to the backbone cabling. (see Figure 1).

Brief Overview

On June 20, 2002 TIA published the category 6 addition to the TIA-568 standard, which has the official document number of ANSI/TIA/EIA-568-B.2-1. A Consortium was formed to promote the adoption of category 6. This Category 6 Consortium has assisted in development of generic standards primarily for balanced twisted-pair cabling systems. To begin this initiative, the Category 6 Consortium released the following white paper and FAQs to provide industry participants with an update on category 6 cabling and applications standards, as well as additional references for finding category 6 information and products. It is important to note that any opinions expressed in this document are those of the participants of the Category 6 Consortium and are not necessarily those of the entire TIA membership. New Announcements"Category 6 Cabling: IEEE 802.3 Forms Study Group for 10G Over UTP", January 2003 White Papers"Category 6 Cabling: Static Discharge Between LAN Cabling and Data Terminal Equipment", January 2003 (registration required on following page) "Category 6 Cabling: A Standards and Systems Overview", August 2002 (registration required on following page) Buy it OnlineBuy and download the Category 6 standard from Global Engineering Documents. Frequently Asked Questions About the Category 6 StandardNote: These FAQs were developed by the Category 6 Consortium. The Category 6 Consortium is an emerging working group whose mission is to create market and industry awareness - as well as demand - for cabling systems and components based on TIA's new category 6 cabling standard. To learn more about the Category 6 Consortium and to participate, please contact TIA at (703) 907-7472 or email gemd@tia.eia.org. Show only questions | Show answers below questions
    Category 6 Cabling System and Application Questions
  1. Why do I need all the bandwidth of category 6? As far as I know, there is no application today that requires 200 MHz of bandwidth.
  2. What is the general difference between category 5e and category 6?
  3. Will category 6 supersede category 5e?
  4. What does category 6 do for my current network vs. category 5e?
  5. When should I recommend or install category 6 vs. category 5e?
  6. What is the shortest link that the standard will allow?
  7. What is a “tuned” system between cable and hardware? Is this really needed if product meets the standard?
  8. What is impedance matching between cable and hardware? Is this really needed if product meets the standard?
  9. Is there a use for category 6 in the residential market?
  10. Why wouldn’t I skip category 6 and go straight to optical fiber?
  11. What is meant by the term "Electrically Balanced"?
  12. Category 6 Cable Questions
  13. What is the difference between enhanced category 5e cable rated for 400 MHz and category 6 cable rated for 250 MHz?
  14. Why did all category 6 cable used to have a spline, and now is offered without one?
  15. Is there a limitation on the size of bundles one can have with category 6? Can you have 200-300 and still pass category 6?
  16. Category 6 Patch Cord Questions
  17. Will contractors be able to make their own patch cords?
  18. Do you have to use the manufacturer’s patch cords to get category 6 performance?
  19. Category 6 Testing Questions
  20. Why do field tester manufacturers offer many different link adapters if everyone meets the standard?
  21. Would you get passing test results if you used a link adapter not recommended by a manufacturer?
  22. Category 6 Connecting Hardware Questions
  23. Are the connectors for category 5e and category 6 different? Why are they more expensive?
  24. What will happen if I mix and match different manufacturers' hardware together?
Show only questions | Show answers below questions Send us feedback if you have a new FAQ to recommend!









American Tele Data763108 CAT 5e Outdoor Cable-1000' Outdoor Rated Category 5e Heavy Duty Industrial Grade Ethernet Cable - Sunlight/UV/Oil Resistant Jacket Suitable for Burial - Unshielded with Unbonded Pairs - Black Coat, PC Connection's Enhanced Category 5e Flooded Outdoor Ethernet cable is made from 4-pair, 24AWG solid copper wire, enclosed in an outdoor rated, moisture and chemical resistant black polyethylene jacket. Flooding compound surrounds the twisted pairs, providing additional moisture protection. This cable is engineered to meet or exceed ANSI/TIA/EIA 568-B.2 performance criteria for 10/100/1000BaseT Ethernet applications-Extreme outdoor gel filled, UV rated, plenum, Cat 5e cable. Perfect for extreme weather conditions. Can be ran exposed or buried.

American Tele Data765108 CAT 6 Outdoor Cable-1000' Outdoor Rated CAT 6- Category 6-Heavy Duty Industrial Grade Ethernet Cable - Sunlight/UV/Oil Resistant Jacket Suitable for Burial - Unshielded with Unbonded Pairs - Black Coat, PC Connection's Enhanced Category 5e Flooded Outdoor Ethernet cable is made from 4-pair, 24AWG solid copper wire, enclosed in an outdoor rated, moisture and chemical resistant black polyethylene jacket. Flooding compound surrounds the twisted pairs, providing additional moisture protection. This cable is engineered to meet or exceed ANSI/TIA/EIA 568-B.2 performance criteria for 10/100/1000BaseT Ethernet applications-Extreme outdoor gel filled, UV rated, plenum, Cat 6e cable. Perfect for extreme weather conditions. Can be ran exposed or buried. THIS IS CATEGORY 6 -CAT 6 Outdoor cable.

Part # 765108 CAT 6 Outdoor Cable Spec's- Outdoor Cat 6 pdf

Our American Tele Data763108 CAT 5e Outoor Cable: ListPrice: $ 310/1000 feet, Our Price $ 189.99/1000 Feet- Discount Available!!Call (866) 342-3721

Our American Tele Data763108 CAT 5e Outoor Cable-1000' Outdoor Rated Category 5e Heavy Duty Industrial Grade Ethernet Cable is not the same as you can buy at 'retails stores that is rated as "indoor-outdoor'- this is the real mccoy and can be direct buried into the ground.

Order Part Number:

American Tele Data763108 CAT 5e Outoor Cable (Custom Lengths Available!- American Tele Datawill cut, and terminate your CAT 5e Outdoor Rated Cable- SAME DAY SHIPPINg available for additional cost.

American Tele Data763208 Aluminum Shielded Cable (Call For Minimum Order) -Aluminuml Shielded Cable (Call For Minimum rder)-1000FT OSP Broadband Cat5e Steel Shielded Cable - 4 pair-Category 5e OSP cables are designed to provide extension of the LAN beyond the premises. AluminumShielded for protection against EMI/RFI. A variety of constructions are available to suit multiple environmental needs.

American Tele Data763308 Steel Shielded Cable (Call For Minimum Order)-1000FT OSP Broadband Cat5e Steel Shielded Cable - 4 pair-Category 5e OSP cables are designed to provide extension of the LAN beyond the premises. Steel Shielded for protection against EMI/RFI. A variety of constructions are available to suit multiple environmental needs.The ultimate in OSP rated CAT 5e cable.

SPECIFICATIONS
ACR (Minimum)—Typical: 30.5 dB/100 m (328.1 ft.) at 100 MHz
Attenuation (Maximum)—22 dB/100 m (328.1 ft.) at 100 MHz
Conductor—24 AWG, solid, insulated copper
Insulation—HD-polyethylene;
Nominal diameter: Standard: 0.23", (0.58 cm); Armored: 0.34" (0.86 cm)
Jacket—UV-resistant, abrasion-resistant polyethylene
NEXT (Minimum)—Typical: 51.7 dB/100 m (328.1 ft.) at 100 MHz
PS-NEXT (Minimum)—Typical: 44.8 dB/100 m (328.1 ft.) at 100 MHz
Return Loss (Minimum)—Typical: 21.2 dB/100 m (328.1 ft.) at 100 Hz
Time Delay Skew (Maximum)—25 nanoseconds
Temperature— -94° to +167° F (-70° to +75° C)

CAT 3-CAT 3 LAN Cable Composite Cable

Call Today For Up To Date Pricing (866) 342-3721(866) 650-3282

Our outdoor rated CAT 5e cable is available in 500 foot- 1000 foot reels as well as custom lengths- since the outdoor rated CAT 5e cable is based on the cost of oil-you need to call us at (866) 342-3721 to get the latest pricing. Generally the outdoor rated CAT 5e Cable costs from$ 150-$ 195 per 1000 foot reel. With custom lengths of the utdor rated CAT 5e cable there is also a cut charge. We can normally ship the same day of order is placed before 1pm Pacific Time.

American Tele Data carries thousands of types of cables from the below manufacturers for CAT 5e cable, CAT 5e Plenum, CAT 6 plenum, CAT 6 cable and Outdoor Rated CAT 5e Cable

CAT6 Bulk Cable- Available in Plenum and PVC

CAT6 Bulk Cable

Type Part Number Description
CAT6 Cable K6-1KSTP-BL CAT6 550MHz Cable, 24AWG, STP, 4 Pairs, 1000', Blue
CAT6 Plenum K6-1KUTP-PLEN-BK CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Black
CAT6 Plenum K6-1KUTP-PLEN-BL CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Blue
CAT6 Plenum K6-1KUTP-PLEN-GR CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Green
CAT6 Plenum K6-1KUTP-PLEN-GY CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Gray
CAT6 Plenum K6-1KUTP-PLEN-RD CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Red
CAT6 Plenum K6-1KUTP-PLEN-WH CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', White
CAT6 Cable K6-1KUTP-BL CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, 1000', Blue
CAT6 Cable K6-1KUTP-WH CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, 1000', White
CAT6 Cable K6-1KUTP-RD CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, 1000', Red
CAT6 Cable K6-1KUTP-GR CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, 1000', Green
CAT6 Cable K6-1KUTP-GY CAT-6 550MHzCable, 23AWG, UTP, 4 Pairs, Solid, 1000', Gray
CAT6 Cable K6-1KUTP-YL CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, 1000', Yellow
CAT6 Cable K6-1KUTP-BL/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Blue
CAT6 Cable K6-1KUTP-GY/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Gray
CAT6 Cable K6-1KUTP-RD/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Red
CAT6 Cable K6-1KUTP-GR/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Green
CAT6 Cable K6-1KUTP-WH/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', White
CAT6 Cable K6-1KUTP-YL/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Yellow

We Carry CAT 5e, CAT 5E and CAT 6 Bulk Cable From The Below Manufacturers

Category 5E Bulk Cable

Type Part Number Description

CAT5E Plenum

K5E-1KUTP-PLEN-RD

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Red

CAT5E Plenum

K5E-1KUTP-PLEN-BL

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Blue

CAT5E Plenum

K5E-1KUTP-PLEN-GY

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Gray

CAT5E Plenum

K5E-1KUTP-PLEN-WH

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, Plenum, 1000', White

CAT5E Cable

K5E-1KUTP-BL

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, 1000', Blue

CAT5E Cable

K5E-1KUTP-WH

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, 1000', White

CAT5E Cable

K5E-1KUTP-YL

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, 1000', Yellow

CAT5E Cable

K5E-1KUTP-RD

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, 1000', Red

CAT5E Cable

K5E-1KUTP-BK

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, 1000', Black

CAT5E Cable

K5E-1KUTP-GR

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, 1000', Green

CAT5E Cable

K5E-1KUTP-GY

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Solid, 1000', Gray

CAT5E Cable

K5E-1KUTP-BL/ST

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Blue

CAT5E Cable

K5E-1KUTP-GR/ST

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Green

CAT5E Cable

K5E-1KUTP-OR/ST

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Orange

CAT5E Cable

K5E-1KUTP-RD/ST

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Red

CAT5E Cable

K5E-1KUTP-WH/ST

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', White

CAT5E Cable

K5E-1KUTP-YL/ST

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Yellow

CAT5E Cable

K5E-1KUTP-GY/ST

CAT-5E 350MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Gray

CAT5E Cable

K5E-1KSTP-RD

CAT-5E 350MHz Cable, 24AWG, STP, 4 Pairs, Solid, Shielded, 1000', Red

CAT5E Cable

K5E-1KSTP-YL

CAT-5E 350MHz Cable, 24AWG, STP, 4 Pairs, Solid, Shielded, 1000', Yellow

CAT5E Cable

K5E-1KSTP-BL

CAT-5E 350MHz Cable, 24AWG, STP, 4 Pairs, Solid, Shielded, 1000', Blue

CAT5E Cable

K5E-1KSTP-GR

CAT-5E 350MHz Cable, 24AWG, STP, 4 Pairs, Solid, Shielded, 1000', Green

CAT5E Cable

K5E-1KSTP-BK

CAT-5E 350MHz Cable, 24AWG, STP, 4 Pairs, Solid, Shielded, 1000', Black
CAT5ECable K5E-1KUTP-CMX CAT-5E 350MHz, Cable, 24AWG, UTP, 4 Pairs, Solid, 1000', UV Jacket for Outdoor Use, (CMX) Cable, Black
CAT5E Cable K5E-1KUTP-CMXF CAT-5E 350MHz, Cable, 24AWG, UTP, 4 Pairs, Solid, 1000', Outdoor Aerial/Duct Cable, Flooded Core, Direct Burial, FRPE Jacket, (CMX) Cable, Pull Box, Black
CAT5E Cable K5E-1KUTP-CMXT CAT-5E 350MHz, Cable, 24AWG, UTP, 4 Pairs, Solid, 1000', Outdoor Aerial/Duct Cable, Mylar Foil & Water Proof Tape, FRPE Jacket, Direct Burial, (CMX) Cable, Pull Box, Black

American Tele Data also offers wholesale priced CAT 5e Cable via "pallet purchasing" in 1000 foot reels for less than $40.00 per box. Plenum CAT 5e plenum at pallet pricing is from $ 70-$85.00 per 1000 foot reel.Please call for details at (866) 650-DATA.

Dielectric Cables Outdoor OSP Cables
Military Cables
Security Cables
Indoor- Outdoor Cables
Datacom/Central Office Cables

Category 6 UTP (SuperCAT1000) plenum (805508), non-plenum (705508) and patch cables (705708) with 200 MHz bandwidth that deliver 2.4 GHz performance Equivalent TO BELDEN Media Twist Part Number 7852A at 40% Less!!

UltraPipe

UltraPipe Category 6e+ cables exceed all proposed Category 6 specifications and provides superior bandwidth performance up to 550Mhz to support broadband video and high-speed full-duplex transmission protocols. It defines a new level of performance with a 300% improvement in PowerSum Crosstalk and a 60% improvement in return loss over Category 6. UltraPipe's patented design includes the revolutionary Isolator pair separator, which resolves NEXT and ELFEXT issues required for accurate transmission using all four pairs.

6ECMP 4 pair non 3x1

6ECMR 4 pair non-plenum

6EJCM 4 pair patch cord



UltraMedia Cable

Engineered specifically for high-speed, full-duplex, parallel transmission protocols that dominate new technologies, UltraMedia's patented design, which includes the revolutionary Isolator pair separator, resolves ELFEXT and balance issues required for accurate transmission using all four pairs. Specified to 400Mhz, UltraMedia provides the performance margin against Category 6 requirements necessary for bandwidth intensive applications such as 3D imaging and Gigabit Ethernet.

7504 4 pair plenum


75N4 4 pair non-plenum


6NF4 4 pair outdoor

Media 6

The Commscope Media 6 meets all Category 6 specification to support broadband video and high speed, full-duplex transmission protocols that new technologies demand. Features include a flexible jacket, thousand to zero footage markers, vibrant colored pairs with a co-extruded color stripe for easy identification, and a smaller OD than typical Category 6 products

4 pair plenum


Residential Cabling Products

When it comes to residential cabling, look to CommScope to provide the solution. Our UltraHome® cables meet the needs of voice, data, and video applications in one easy-to-install product. The UltraHome family consists of coaxial cable, Category 5e unshielded twisted pair, and multimode fiber in single, Siamese, and bundled configurations designed for delivering true multimedia inside the home.

Recently, CommScope introduced their expanded Residential Cabling line. The Residential Cabling catalog contains 20 new coaxial, fiber, and UTP cables for residential voice, data, and video applications in single, Siamese, and bundled designs. CommScope's UltraHome® residential cabling products provide the foundation to support the capabilities of today's technology as well as those of the future.



DRAKA- Helix -Hi Temp Products

Category 6 UTP (SuperCAT1000) plenum (805508), non-plenum (705508) and patch cables (705708) with 200 MHz bandwidth that deliver 2.4 GHz performance

Enhanced Category 5e UTP (SuperCAT360) plenum (804508), non-plenum (704508) and patch cables (704708) tested to 360 MHz for extended Category 5e performance

Category 5e UTP (SuperCAT100E) plenum (803308), non-plenum (703408) and patch cables (701308) that meet all Category 5e performance criteria

Category 5e UTP for outdoor applications (All Weather SuperCAT) for direct buried, duct or aerial applications (763108) when Cat5e performance is needed to withstand weather or temperature extremes - aluminum armored (763208) and steel armored (763308) versions available

Category 5 (SuperCAT100) plenum (803508), non-plenum (703108) and patch cables (701008) delivering solid 100 MHz Category 5 performance - 25 pair versions are available in plenum (803150) and non-plenum (703150) constructions

Category 3 UTP - plenum (801308), non-plenum (702308) and patch cables (700708) available - 25 pair versions are available in plenum (801350) and non-plenum (702350) constructions - patch cables available in 2, 3 and 4 pair



Local Area Network Products - Category 5e+


5504M 4 pair plenum 3x1


5504 4 pair plenum 4x0


55N4R 4 pair non-plenum


5524M 8 pair plenum 3x1


5N54 8 pair non-plenum

5NF4 4 pair outdoor



OUTSIDE RATED CAT 5e CABLE

This all weather SuperCAT cable is an outdoor rated CAT 5e cable that can be installed directly in the ground, inside a duct or aerially lashed to a support member. The cable is fully flooded and has a tough UV and abrasion resistant black polyethlene jacket. The cable is designed to withstand temperatures as low as -70degrees C (Celsius) and as high as 75 degress C. Data transmission rates are up to 100Ms/second. This cable is the ideal solution for connecting LAN terminal locations outside the main building such as portable classrooms without the need to use expensive optical fiber systems.Optional aluminum or steel shielding systems provide addtional protection for EMI and damage caused by rodents.

Order Part Number:

American Tele Data763108 CAT 5e Outoor Cable (Custom Lengths Available!)

American Tele Data 763208 Aluminum Shielded Cable (Call For Minimum Order)

American Tele Data 763308 Steel Shielded Cable (Call For Minimum Order)

Call Us For a Custom Quote Today For All Your Cable Needs (866) 342-3721 or 650-DATA
