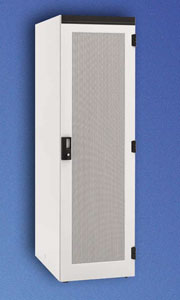

Tecoras Basis Cabinet W 700, closed Front Door
	Tecoras Outdoor Systems (PDF, 1.4 MB)   ■ Double-wall attachable outdoor enclosure ■ With EMC sealing ■ Natuarally vented double walls ■ Naturally vented roof ■ All bolting and connection elements situated inside ■ Hinged solar protection roof ■ Doorstop changeable ■ Door with lock and release lever for extrusion half-cylinder with saw protection, triple interlocking system ■ Door lock-in, lock-out, with opening angles of 90° and 135° For the installation of ■ Components in accordance with IEC 297-3 (19") or IEC 917 (metric) ■ Non-standard equipment with max. installation width of 535 mm Load rating ■ 4000N static Standards ■ Built-in units in accordance with IEC 297-3 (19") and IEC 917 (metric) ■ Earthing in accordance with VDE 0100 ■ IP protection in accordance with EN 60529 Degree of protection ■ IP 55 Tests ■ Environmental test in accordance with IEC 68-2-1, IEC 68-2-2, IEC 68-2-5, IEC 68-2-56 ■ Vibration tested in accordance with IEC 68-2-6 ■ Earthquakeproof to zone 4 in accordance with Telcordia GR-63-CORE ■ Shielding attenuation in accordance with IEC 61 587-3 at least 25 dB Material / Finish ■ Basic rack: extruded aluminium AlMgSi0,5 ■ Corner piece: die-cast aluminium ■ Internal cover panel: aluminium AlMg 3, 1.5 mm thick, chrome-plated ■ External cover panel: aluminium AlMg 3, 2 mm thick, chrome-plated, powder-coated front quality in accordance with GSB International, coarse textured ■ Plinth frame: zinc passivated sheet steel ■ Plinth cover panel: hot-galvanized (zinc-coated) sheet steel DX 51 D + Z 140, 1.5 mm Colour ■ RAL 7035 light grey Supply schedule 1 Body consisting of basic rack, cover, base, rear panel, 2 side panels, 2 corner extrusions 1 Rear cover panel 2 Side cover panel 1 Solar protection roof 1 Front door, opens to the right, closed 1 Plinth frame 210 mm high, with 2 side cover panels, with 1 front and 1 rear removeable panel 1 Earthing set 1 Cable entrance panel, closed How supplied ■ assembled Please note Various cabinet combinations can be configured from the same basic modules. Double or triple cabinets are formed from the extension of one or two add-on cabinets to the basic cabinet. The extension is made on the side cover panel. These combinations are also possible with an add-on enclosure mounted on the right or the left. The extension is made on the side cover panel. Tecoras Basic Cabinet W 700 with closed front door Double-wall Order Number width installation width depth useable depth height installation height h   B [mm] b [mm] T [mm] t [mm] H [mm] [U] [mm]   700 535 405 330 1110 20 895 01.901.003.1 1290 24 1075 01.901.005.1 1510 29 1295 01.901.007.1 1690 33 1475 01.901.009.1 700 535 705 630 1110 20 895 01.901.013.1 1290 24 1075 01.901.015.1 1510 29 1295 01.901.017.1 1690 33 1475 01.901.019.1

Command Centers	Data Cabinets-19" Server Racks- 19" Network Racks	Data Cabinets- 4 Post Frame- 4 Post Rack-19" 4 Post Rack	Data Cabinet 19" Server Racks With Mesh Door	Data Cabinet 19" Server Rack	Data Cabinets 19" Server Racks- 19" Network Racks

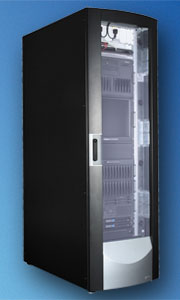

Water Cooled Cabinets- Water Cooled Server Racks	Flexible rack fixing with height adjustable wall mounting	Data Cabinets-Seismic Racks- Seismic Cabinets- Zone 4 Data Cabinets	Cable Management Racks	19" Small Racks	Outdoor Cabinets

Cable Management Racks & Accessories- more info

Zone 4 Data Cabinets- Data Racks Zone 4 Data Cabinets

Ladder Racks- More Info



American Tele Data offers Newton Data Cabinets, Hoffman Data cabinets, Quest Data Cabinets, ESW Data Cabinets, Cooper Data Cabinets, B-Line Data Cabinets, Quest Data Cabinets, and cabinets from other manufacturers by request

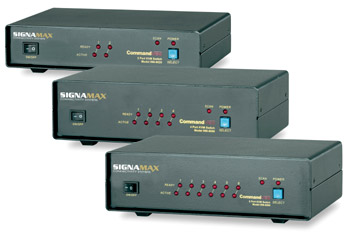

LAN Rack Accessories- Keyboard trays-Shelves KVM Switches

We carry cable management racks, Wallmount Rack and wallmount rack solutions for applications ranging from data centers, server rooms, to all office envrironments. Not only will American Tele Datawill meet or beat all US based pricing- but will assist you in designing your network at NO EXTRA CHARGE. Call us for details at (866) 342-3721.

Wall Mount Racks and LAN Stations from ICC,Signamax, Great Lakes,Ortronics,Kendall Howard and more.

Wall Mount Racks

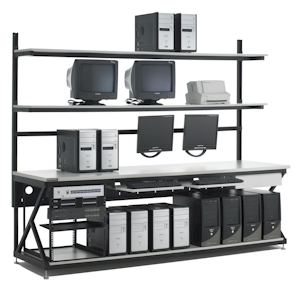

Lan Stations

Lan Stations















Encore- ESW Data Cabinets

Advantage Series Data Cabinet Cabinets built for the future of your data communications network.

Zone 4 rated Data CabinetsSurvive the Big One The MAG VII has been tested to withstand seismic stress equal to 7.1 on the Richter Scale

Cablelogic Data Cabinet Easily manage and access your cabling with CableLogic Enclosure Frames.

Wallbox Data Cabinet The entire wallbox is able to swing away from the wall, offering convenient access to equipment.

NEMA Data Cabinet Constructed of either aluminum or stainless steel and are designed to protect against the elements.























Rack Mount Shelves- Rack Mount Enclosures

Rack Mount Shelves Fiber Optic Rack Mount Enclosures

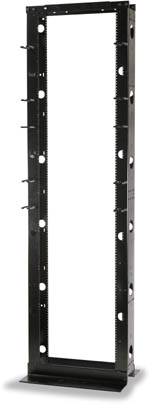

Standard equipments racks are designed for 19 inch rack mount equipment. Racks are constructed of aluminum and are available in a variety of standard heights. Each rack is drilled and tapped on both the front and the rear rails with 10-32 holes on EIA spacing. Standard rack finish is black. Racks are packaged knocked down for easy shipment.

Additional Data Cabinets- Data Racks- Data Enclosures - Wall Mount Enclosures-Seismic Racks

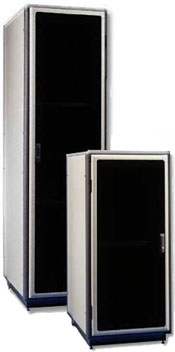

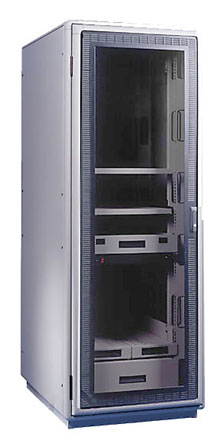

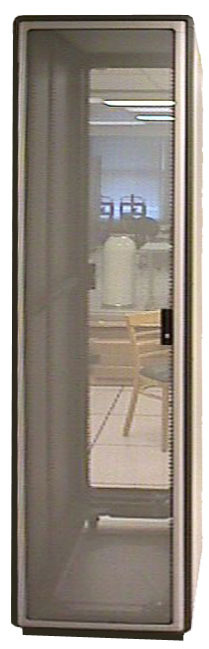

Lan Racks This server rack is designed for applications that require the highest quality and versatility. For rackmount or tower servers.	Server Racks This server rack is designed for applications that require the maximum amount of airflow and still retain the security of locked doors.  Perfect for rackmount or tower servers that run particularly hot.	Server Cabinets The FRS series server rack / cabinet is designed for applications that require the highest quality and most advanced features. These server racks /cabinets provide quality, protection and security for your mission critical equipment. Excellent for servers on roll-out glides.	Zone 4 Racks-Seismic Racks Based on the standard, patented frame design of our RS, RSP and FRS server rack series, this NEBS compliant configuration has been tested and certified to meet Telcordia (Bellcore) GR-63-CORE requirements for ZONE 4 seismic earthquake environments.	Heavy Duty Server Racks Server rack frame features 3 sets (6 rails) of adjustable universal vertical rackmount rails:	Economy Server Cabinet Complete with Perforated front and split level rear door 42u, 39" usable depth (33" rack depth)

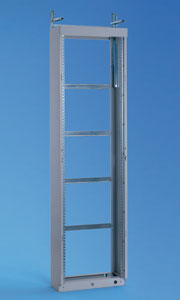

Telco Racks-Network Racks 19", 23", 24" widths This heavy duty Telco server rack is constructed of high-grade 6063-T5 extruded aluminum. Shown with optional shelves, accessories 70", 77" and 84"h available	Open Server Relay Rack This 4 post Relay Rack is ideal for rackmount servers, KVM switches, network equipment. etc. Suitable for rackmount equipment where security at the rack level is not required.	Rack & Data Cabinet Accessories	WallMount Rack Cabinet Attractive, secure wall mount rack cabinet comes in a variety of heights and depth. This pivoting, sectional wall cabinet is ideal for larger systems in both secured and non-secured areas.	Modular Server Rack-Desk Top Racks Durable, lightweight, stackable and completely portable. Great for small closets, under the desk or countertops. Never run out of rack space again!	Portable Rack Mount Cases Meets Military Standard Available Empty, with Cubed Foam or with Dividers Wheels & pull handles available on some Waterproof 2.62 times the impact resistance of Pelican, and 3.32 times the impact resistance of Hardigg Storm

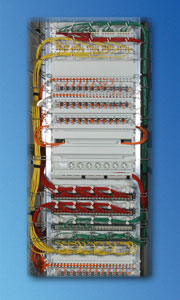

Cable Management Racks

Cable Management Racks combine the features of a high quality relay rack, as well as effective cable routing and raceway facilities, all in one complete unit. All aluminum cable management rack allows for the mounting of a wide variety of 19 inch wide patch panels, hubs, switches, and related rack mount equipment. The rack is supplied with cable hangers, cable ties and generous provisions for organizing incoming cables for termination with effective patch cord management on the front. Racks are shipped with all assembly required plus an accessory pack that includes 20 cable ties, 16 cable hangers, 40 cuphead mounting screws, and grommeting for cable routing cutouts.

Standard equipments racks are designed for 19 inch rack mount equipment. Racks are constructed of aluminum and are available in a variety of standard heights. Each rack is drilled and tapped on both the front and the rear rails with 10-32 holes on EIA spacing. Standard rack finish is black. Racks are packaged knocked down for easy shipment.





Cable Management Racks

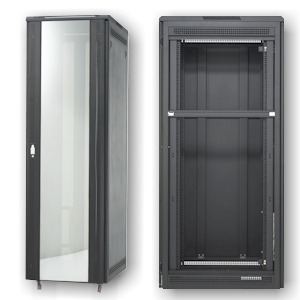

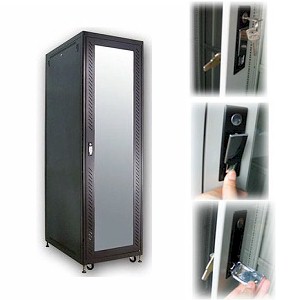

41U 1930 Series Rack- Data Cabinet- -Part Number ATD41U1930
This rack is a great all around entry level racking system. Its simple design offers just about everything you need in a rack from ventilation and cooling to fully adjustable rails and removable side panels.

Features:
Standard EIA 19" Rack with cage nut style rails
Aluminum front and rear doors frames
Steel removable side doors, vertical rails, top and bottom covers
Front door with acrylate
Rear door with free air cooling
Both front and rear doors equipped with key lock for security
Removable and adjustable vertical rails
Ground screws
Lockable wheels
2 x 12cm low noise AC fan on top cover
1 x 6 outlet 110V AC power strip

Package information:
Ships LTL or common carrier
Dimensions: W.24.8� x H. 74.88� x D. 35.43�
Net Weight: 198Lbs
Shipping Weight: 220Lbs
MEAS: 39 cuftw

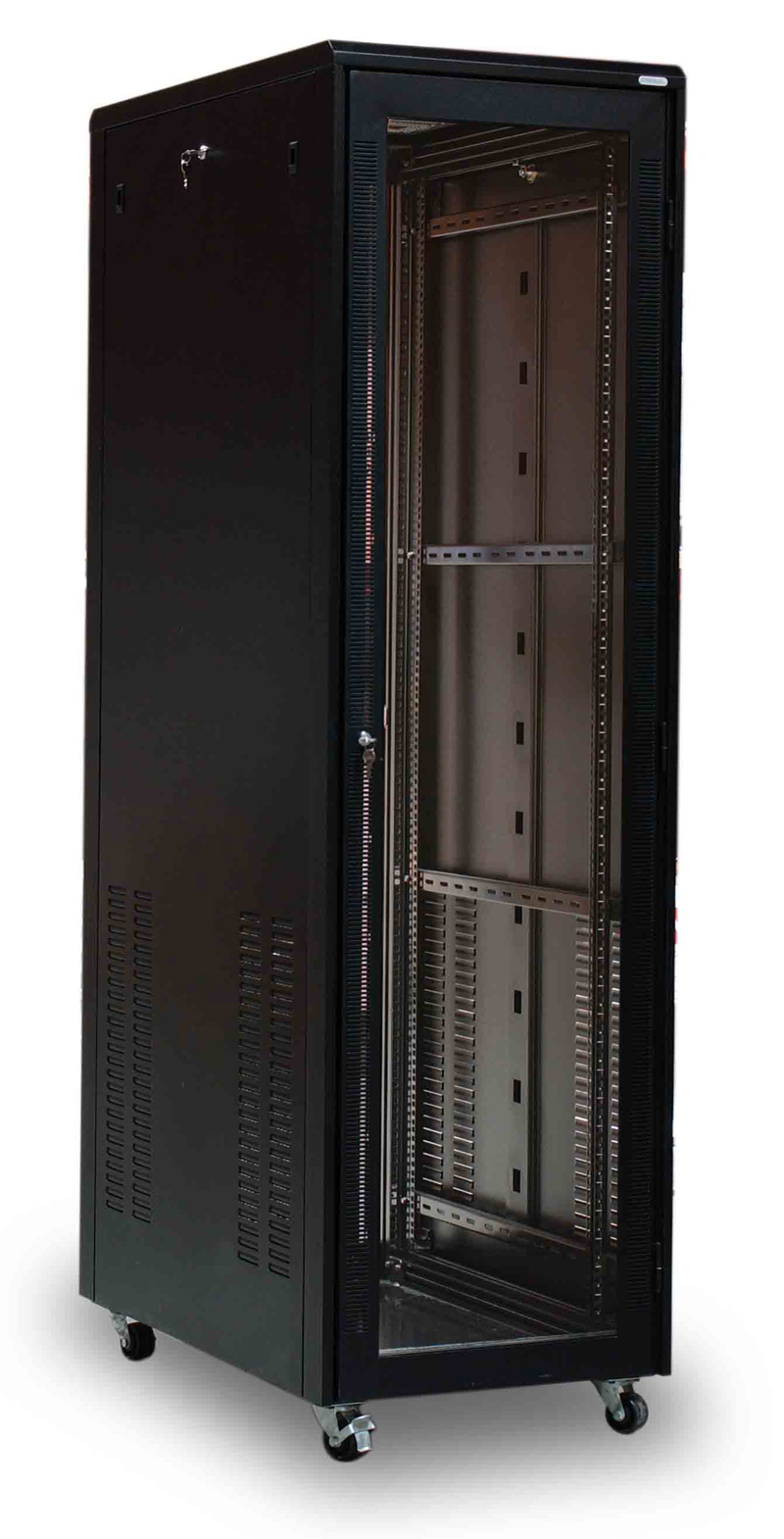

41U 1931 Series Rack
This rack is the best of the best in racking cabinets. Its frame is made from extruded 6063 Aluminum for maximum strength and durability. Each of these racks ships complete with all accessories included and installed complete. Our 41U rack is also EIA compliant and has a 10 year limited warranty on parts.

Features:
30" Rail to rail usable depth
Front and rear fully adjustable cage nut style rails (4 total)
Lift off side panels for easy access.
Semi-vented locking front door with integrated glass
Fully perforated locking rear door
Bottom panels remove for cabling
Dual ultra-quite topside fans remove ambient heat
6� power strips added for convenience.
4 heavy duty swiveling lockable casters
4 leveling feet
100 cage nuts
100 rack screws

Shipping options:
LTL � call for pricing
Door to Door available (they will deliver to your offices server room

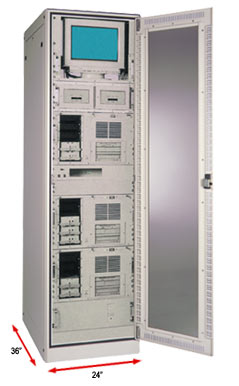

XUS84-XL Ultra Server Exclusive Features

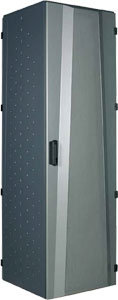

Zone 4 Data Cabinets- Zone 4 Racks

The Zone 4 Seismic Cabinet was extensively tested by an independent testing facility and passed with flying colors. It was subjected to static load test conditions and Zone 4 earthquake vibration test conditions in accordance with NEBS document TR-000063, Issue 4, 1992. There was no visible evidence of damage or deterioration to the cabinet as a result of the earthquake vibration test. The maximum displacement of the cabinet did not exceed the simple amplitude of 3 inches. More information as well as test results are available upon request.

American Tele Data carries a complete line of relay racks,ladder racks, data cabinets, raceway systems, distribution racks, cable management racks and enclosures for very application from the telephone closet to the network room to your co-location data center.We now have available Hendry rack systems and Newton racks for all you central office and data center needs. Call us today for a price quote at (866) 650-DATA. American Tele Data, founded in 1992, has become a leading supplier of quality telecommunication equipment including computer cabinets, server racks, LAN work centers, printer stands, data cabinets, computer workstations, wire racks and KVM switches to IT centers. With offices located throughout the United States, we serve all regions of the United States and Canada. American Tele Dataspecializes in providing quick solutions and quality products at discount prices that help organize and secure rackmount equipment.
.

We Now Carry Hendry & Newton Racks and Accesories



We have data cabinets (models ATD4232F ATD4240F ATD2740F ATD2732F) that can ship same day! Call us today at (866) 342-3721 for more info- or click on this link for more info on our same day data cabinet shipping. We carry data cabinets from several manufacturers that allow upis high on fine styling and value-for-money features. It has been designed and engineered specifically for easy assembly and rapid equipment integration at site.

Its innovative design is based on the use of aluminum profiles for the four vertical pillars, which are connected solidly to two welded steel end-frames. This results not only in low weight and an elegant appearance, but also permits quick assembly. Due to the rigidity provided by the steel end-frames, our data cabinet is able to handle equipment loads of up to 770 to 1500 lbs. This means it an ideal choice for mid-range use as a Server enclosure, or for network cabling purposes.

These zone 4 racks and zone 4 enclosures are designed for maximum protection for very application from the telephone closet to the network room to your co-location data center. Call us today for a price quote at (866) 650-DATA.

We Now Carry Hendry Zone 4 Racks & Zone 4 Enclosures

West Coast (866) 342-3721 East Coast (866) 650-DATA

We are Updating Our Website- Please Call Us Your Hendry Part Number and We WIll Provide You With An Immediate Quote

Zone 4 Racks

Zone 4 Data Cabinets

STANDARD FEATURES

* All racks are drilled and tapped to receive guard rails, cable rings and accessories.
* Holes are provided in sides for joining racks or mounting ladder end guards.
* All racks are equipped with top angle, base angle and bolts for assembly.
* Order guard rails and accessories as required.
* Different RMU options are available. See the Options and Ordering Information page.

* All racks are drilled and tapped to receive guard rails, cable rings and accessories.
* Holes are provided in sides for joining racks or mounting ladder end guards.
* All racks are equipped with top bars, base angles and bolts for assembly.
* Racks over 8'-0" should be ordered with a top angle. Order option D.
* Order guard rails and accessories as required.
* Different RMU options are available. See the Options and Ordering Information page.

19" Steel Channel Mounted Relay Racks- Available in 19" and 23"

STANDARD FEATURES

* This steel welded Channel rack has been designed for the Bell System and has been tested and approved to Pacific Bell Static Seismic Test PBS-000-102PT.
* Overhead bracing is required for seismic installations.
* All racks are drilled and tapped to receive guard rails, cable rings and accessories.
* Holes are provided in sides for joining racks or mounting ladder end guards.
* Welded construction is used on the basic frame shown.
* 3" high top angle may prevent mounting of deep equipment in top mounting space.
* Order seismic anchor kit, 02100-19, separately.
* Order guard rails and accessories as required.
* Different RMU options are available. See the Options and Ordering Information page.
