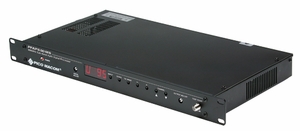

PFAP550MS : 806MHz Sub-Band Extended Agile Signal Processor
Features
- 57dBmV minimum output for a 55dB in-band carrier to noise ratio provides superior picture quality
- 132 Channel Input Frequency Range 5.75~806MHz (CATV T7~T13, 2~13, A1~A5, A~ZZZ, 89~125, UHF 14~69)
- 82 Channel Output Frequency Range 54~550MHz (CATV 2~13, A1~A5, A~PPP)
- Agile microprocessor control enables digital push-button input and output channel selection for ease of installation, configuration and servicing
- Non-volatile memory for input and output channel recall in the event of power failure
- Front panel controls and test point enable easy setup and monitoring
- BTSC stereo compatibility for pass-through of stereo signals
- SAW filtered for superior adjacent channel performance enables drop-in channel expansion
- Auto-insertion of standby carrier with audio-mute generator in the event of input signal loss preserves system integrity
- IRC and HRC input and output offset available for frequency settings in systems using offset channels
Specifications
| Input Bandwidth | 5.75~806MHz |
|---|---|
| Input AGC Range (analog) | 0~25dBmV |
| Noise Figure | 8dB (VHF) 10dB (UHF) |
| Output Bandwidth | 54~550MHz |
| RF Output (analog min) | 57dBmV |
| Carrier to Noise (In-band) | 55dB |
| Carrier to Noise (Out of band) | >65dB |
| Spurious Output | >60dB |
| Output Frequency Stability | ±5kHz |
| RF Input Connection | 75Ω F-Female |
| RF Output Connection | 75Ω F-Female |
| Voltage Input | 90~260VAC |
| Power Output Receptacle | Yes |
| Dimensions | 19˝(L) x 9˝(D) x 1.75˝(H) |
| Weight | 8.2 lbs. |
