American Tele Data
carries a wide range of VDSL Modems and VDSL equipment solutions
ranging from commercial to residential applications from several leading manufacturers including Telco Systems, Dlink and RAD..
Whether you are a carrier, ISP or reseller, call American Tele Datatoday and ask one of
our engineering specialists for additional information in applying this leading
technology for your specific needs. The EdgeLink VDSL System brings the simplicity and efficiency of Ethernet to legacy telephony infrastructures. Broadband applications and increasing Internet usage have created a bandwidth demand that supersedes the capabilities of analog transmission over telephone lines. Use of Digital Subscriber Line (xDSL) technology enables existing telephony infrastructure to deliver broadband services. The EdgeLink VDSL System incorporates xDSL?s line of thought by combining Very high bit-rate Digital Subscriber Line (VDSL), which is the most robust xDSL technology, with 10/100/1000 Mbps Ethernet.
Therefore, remote office connectivity and high-bandwidth applications, such as live video on demand and fast Internet access, can now be implemented at minimal cost by using the wholesomeness of Ethernet with the economy of VDSL. EdgeLink VDSL System switches are fully manageable via SNMP, CLI, or the Web. The CLI complies with the de facto industry standard and enables administration via a well-known interface. Web management is made possible by utilizing embedded Java? based management technology. Secure management, a must for todayís networks, is supported by utilizing standards based SSH2 encryption and RADIUS Authentication.

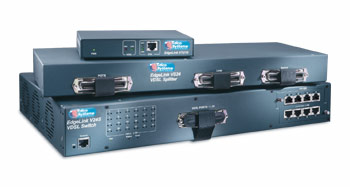

The EdgeLink VDSL System is fully compatible with BiNOSCenter EMS that can be used to manage all BATM products from one central location. The EdgeLink VDSL System is comprised of VDSL concentrating switches and modules, splitters, modems, cables, infrastructure materials, and application specific software.
American Tele Datacan
also provide you engineering assistance to help design your network.
Solutions, VDSL Modems, VDSL Termination Units
10BaseS Network Termination Unit (NTU)
(Very high bit rate Digital Subscriber Line) is the most robust
answer to the growing broadband access needs of consumers and
businesses. Utilizing innovative 10BaseS technology over VDSL
data can be transferred over the existing PSTN (Public Switched
Telephone Network) at the rate of 10BaseX Ethernet (10 Mbps) for
a distance of up to 1350 meters (4400 ft.). 10BaseS technology
is fully compatible with Ethernet and therefore allows seamless
transmission of TCP/IP over VDSL. Hence, high-speed Internet access
and demanding multimedia and video converencing applications can
BATMs integrated VDSL solution is based on advanced QAM
(Quadrature Amplitude Modulation) technology whose fast and vigorous
channel equalization and signal accquisition allow symmetrical
bi-directional data transfer over the existing PSTN. The BATM
VDSL solutions is main components are the 10BaseS NT modem
and the 10BaseS NT/LT 4 port modules for BATM Titan switches,
and the 10BaseS POTS Splitter.

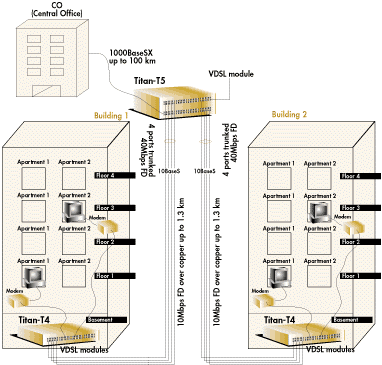

EdgeLink V24S® offers the simplicity and efficiency of Ethernet to legacy telephony infrastructures. EdgeLink V24S uses the fastest of the DSL technologies, 24 ports of 10 Mbps symmetrical VDSL (Very High Bit-rate Digital Subscriber Line). EdgeLink V24S combined with EdgeLink VTU10® offers the ideal solution for MTU/MDU (Multi-tenant, Multi-dwelling) applications for remote office connectivity and high-bandwidth applications, such as streaming video, video on demand and surveillance.
