Wireless Supplier - Firetide - 82-5663 - HotPort 6201 - 4 x N-Female - Wireless Backhaul - Wireless Solutions - National Wireless Rollouts-Bluetooth - Wi Fi - Wi Fi Solutions- Wireless Integration



National Wireless Supplier- Wireless Products-Welcome to American Tele Data a national Wireless Supplier where we specialize in wireless equipment and national wireless rollouts for WISP's, CLEC's, Carriers, Municipalities, Hotels, Conference Centers, Dealers Contractors and national chains and franchises looking to offer wireless services to their customers and visitors. Our wireless solution range from wireless switching and transmission equipment to antennas, to outdoor cell site enclosures. We have wireless solutions for the local restaurant or Pizza chain to offer WIFI to customers on a lunch break with their laptops to offering substantial discount to national wireless rollouts to franchises and hotel chains. Our wireless solutions for major hotel chains range from lobby and pool WIFI services to entire campus solutions. For municipalities we offer large WIFI solutions to deliver wireless Internet access to shoppers to offering remote wireless carrier grade services to remote- Rural areas.

We carry the wireless equipment from many manufacturers- too many to list here so we ask if you do not see it listed here please call us at (866) 342-3721 and ask one of our national sales executives your wireless network questions.





Reliable connectivity anywhere



HotPortTM 6000 Series
Wireless Mesh Nodes

HotPointTM 4000 Series
Access Points


HotPortTM 7000 Series
Wireless Mesh Nodes
HotClientTM Series 2000
Customer Premise Equipment
?

HotView ProTMMesh Management Software


Part No. Firetide Part No. Description
6000 Series Outdoor Mesh Nodes
82-5663 6201 HotPort 6201, Outdoor, Single Radio, Tri-Band Spectrum
2.4 GHz/4.9 GHz/5 GHz, 400 mW, Wireless Mesh Node

Includes 5 meter North America AC power cable, single weatherized ethernet cable, clawtooth mounting kit, two 2.4 GHz 5 dBi antennas (for staging), two 5 GHz 5 dBi antennas (for staging), documentation CD and hardware installation guide.

HotPort 6201 mesh nodes provide reliable Ethernet connectivity over a high-performance, self-forming wireless mesh backbone - indoors, outdoors, or onboard moving vehicles. All HotPort nodes have multiple Ethernet ports for connecting network devices or other networks to the wireless mesh.  HotPort 6201 mesh nodes operate at 2.4 GHz, 4.9 GHz (U.S. public safety licensed band), or 5 GHz. The HotPort 6201 tri band nodes are equipped with a single radio, operating at 400 mW.

82-5664 6202
HotPort 6202, Outdoor, Dual Radio, Tri-Band Spectrum
2.4 GHz/4.9 GHz/5 GHz, 400 mW, Wireless Mesh Node


Includes 5 meter North America AC power cable, single weatherized ethernet cable, clawtooth mounting kit, two 2.4 GHz 5 dBi antennas (for staging), two 5 GHz 5 dBi antennas (for staging), documentation CD and hardware installation guide.

HotPort 6202 mesh nodes provide reliable Ethernet connectivity over a high-performance, self-forming wireless mesh backbone - indoors, outdoors, or onboard moving vehicles. All HotPort nodes have multiple Ethernet ports for connecting network devices or other networks to the wireless mesh.  HotPort 6202 mesh nodes operate at 2.4 GHz, 4.9 GHz (U.S. public safety licensed band), or 5 GHz. HotPort 6202 tri band nodes are equipped with dual radios, operating at 400 mW.

To maximize performance, dual-radio HotPort 6000 nodes support two radio modes. In the "bonded" mode, both radios are combined to operate as a single unit that provides double the bandwidth of a single radio equivalent. This is ideal for bandwidth-intensive application such as video surveillance, resulting in crystal clear video images. This mode also provides a "fat pipe" for point to point wireless backhaul - for example, to connect two mesh networks.
82-8426

6200

HotPort 6200 Outdoor Dual Radio
Radio 1 - 900 MHz/2.4 GHz/4.9 GHz/5 GHz
Radio 2 - 400mW, Wireless Mesh Node
    Includes 5 meter North America AC power cable, single weatherized ethernet cable, clawtooth mounting kit, (1) 2.4 GHz 5 dBi antenna (for staging), (1) 5 GHz 5 dBi antennas (for staging), (1) 900 MHz 5dBi antenna (for staging), documentation CD and hardware installation guide.
HotPort 6000 Series Indoor Mesh Nodes
82-5661
6101
HotPort 6101, Indoor, Single Radio, Tri-Band Spectrum
2.4 GHz/4.9 GHz/5 GHz, 400 mW, Wireless Mesh Node
Includes Power Supply Desktop Brick 15VDC, 2 meter North America AC power cable, two 2.4 GHz 5 dBi antennas, two 5 GHz 5 dBi antennas, documentation CD and hardware installation guide.

HotPort 6101 mesh nodes provide reliable Ethernet connectivity over a high-performance, self-forming wireless mesh backbone - indoors, outdoors, or onboard moving vehicles. All HotPort nodes have multiple Ethernet ports for connecting network devices or other networks to the wireless mesh.  HotPort 6101 mesh nodes operate at 2.4 GHz, 4.9 GHz (U.S. public safety licensed band), or 5 GHz. The HotPort 6101 tri band nodes are equipped with a single radio, operating at 400 mW.
82-5662
6102
HotPort 6102, Indoor, Dual Radio, Tri-Band Spectrum
2.4 GHz/4.9 GHz/5 GHz, 400 mW, Wireless Mesh Node


Includes Power Supply Desktop Brick 15VDC, 2 meter North America AC power cable, two 2.4 GHz 5 dBi antennas, two 5 GHz 5 dBi antennas, documentation CD and hardware installation guide.

HotPort 6102 mesh nodes provide reliable Ethernet connectivity over a high-performance, self-forming wireless mesh backbone - indoors, outdoors, or onboard moving vehicles. All HotPort nodes have multiple Ethernet ports for connecting network devices or other networks to the wireless mesh.  HotPort 6102 mesh nodes operate at 2.4 GHz, 4.9 GHz (U.S. public safety licensed band), or 5 GHz. HotPort 6102 tri band nodes are equipped with dual radios, operating at 400 mW.

To maximize performance, dual-radio HotPort 6102 nodes support two radio modes. In the "bonded" mode, both radios are combined to operate as a single unit that provides double the bandwidth of a single radio equivalent. This is ideal for bandwidth-intensive application such as video surveillance, resulting in crystal clear video images. This mode also provides a "fat pipe" for point to point wireless backhaul - for example, to connect two mesh networks.

82-8427 6100 HotPort 6100 Indoor Dual Radio
Radio 1 - 900 MHz/2.4 GHz/4.9 GHz/5 GHz
Radio 2 - 400mW, Wireless Mesh Node
  Includes 5 meter North America AC power cable, single weatherized ethernet cable, clawtooth mounting kit, (1) 2.4 GHz 5 dBi antenna (for staging), (1) 5 GHz 5 dBi antennas (for staging), (1) 900 MHz 5dBi antenna (for staging), documentation CD and hardware installation guide.
82-8411 MT-6100 HotPort 6100 Family Indoor Mounting Kit for wall, upright, ceiling
and office panel (cubicle) installation, 10 machine screws

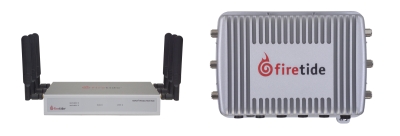

HotPort 7200 Outdoor / 7100 Indoor Wireless Mesh Nodes

4th Generation MIMO-based Infrastructure Mesh Extends Firetide’s Technology Lead

Viable Alternative to Wired Infrastructure
Firetide HotPort 7000 MIMO-based infrastructure mesh delivers best-in-class performance with throughput of up to 400 Mbps, exceeding that of current wired solutions like T1, Fast Ethernet and OC-3 fiber, and provides a viable alternative to fiber or leased lines.
• Up to 400 Mbps throughput; fiber-equivalent latency at .9 ms per hop; 1,000 VoIP calls per node
• Built-in interference mitigation; intelligent routing; end-to-end QoS on a per-flow basis
• Integrated spectrum analysis; network capacity planning and antenna alignment tools
• Dual configurable radios in 2.4, 4.9 (U.S. public safety licensed band) and 5 GHz frequency bands; indoor and outdoor models.

82-5697 7200 HotPort 7200, Outdoor MIMO-802.11n, Dual Radio, Tri Band Spectrum 2.4/4.9/5 GHz
    Includes: Power Supply, Desktop Brick 15VDC, Power Cable, (6) 2.4GHz 5dBi antennas, (6) 5 GHz 5 dBi antennas, documentation CD, and hardware installation guide.  1 radio enabled on purchase - 82-5699 license (below) required to enable second radio.
82-5698 7100 HotPort 7100, Indoor MIMO-802.11n, Dual Radio, Tri Band Spectrum 2.4/4.9/5 GHz
    Includes: Power Supply, Desktop Brick 15VDC, Power Cable, (6) 2.4GHz 5dBi antennas, (6) 5 GHz 5 dBi antennas, documentation CD, and hardware installation guide.  1 radio enabled on purchase - 82-5699 license (below) required to enable second radio.
82-5699   Electronic License to allow user to enable and use the second radio in the 7000 Series.

HotPoint 4601 Outdoor Wireless Access Point
82-5660 4600 HotPoint 4600 Outdoor Tri-Band 2.4/4.9/5.8 GHz Access Point

• IEEE 802.11b/g
• Up to 16 SSIDs per HotPoint
• Up to 16 independent VLANs
• 802.11i, WPA2
• 40 bit, 104 bit WEP keys
• 128 bit, 256 bit AES keys
• 802.1x, RADIUS authentication
• Up to 64 concurrent users simultaneously per HotPoint
• One 10/100 autosense Base-T port
• Operating temperature: -20º C to +55º C (-4º F to +131º F)


HotPoint™ 4000 Series Wireless Access Points
82-8400 4000-2000 HotPoint 4600 Access Point Stand alone Accessory Kit Bundle -


Includes Single Ethernet Transistion Cable w/watertight Ethernet connector (3200-2102), 2 meter, Indoor rated power supply with water tight connectors (3200-9102), USA, UK, EU power cords, 10 meter Power Cable, DC to DC (3200-2103)

HotPoint 4501 Indoor Wireless Access Point
82-5659 4500 HotPoint Indoor Tri-Band 2.4/4.9/5.8 GHz Access Point


• IEEE 802.11b/g
• Up to 16 SSIDs per HotPoint
• Up to 16 independent VLANs
• 802.11i, WPA2
• 40 bit, 104 bit WEP keys
• 128 bit, 256 bit AES keys
• 802.1x, RADIUS authentication
• Up to 64 concurrent users simultaneously per HotPoint
• One 10/100 autosense Base-T port

HotPoint™ 4000 Series Wireless Access Points


HotPoint 4200 Outdoor / 4100 Indoor Wireless Access Point
82-8429

4200

Outdoor HotPoint 4200 Access Point.
    Ruggedized enclosure with one weatherproof connector.
82-8428

4100

HotPoint Indoor HotPoint 4100 Access Point
    Provides wireless access within buildings and moving vehicles.

HotClient Customer Premise Equipment (CPE)
82-8418

2200

HotClient 2200 Outdoor CPE

The ruggedized outdoor HotClient 2200 CPE can be placed on rooftops, in atria, and in outdoor hallways, making it ideal for office buildings and multi-dwelling units. The outdoor CPE is Power over Ethernet-enabled for extra versatility.

Included Accessories
• Power-feed unit (AC power to PoE)
• Bracket for pole mounting


Datasheet  HotClient 2000 Customer Premises Equipment

82-8419 2100 HotClient 2200 Indoor CPE

The indoor HotClient 2100 CPE is essential for large-scale municipal deployments requiring reliable access to penetrate through thick walls.
The CPE is housed in a plastic enclosure for wall or desktop mounting.


Included Accessories
• AC power adapter with interchangeable plug inserts
  (US, Europe, UK, Australia)
• Antennas: one pair of 5 dBi, 2.4 GHz omni directional antennas


Datasheet  HotClient 2000 Customer Premises Equipment


HotView Pro Network Management Software
Part No. Firetide Part No. Description
82-5626 3000-9000-ELE HotView Pro (Electronic License)


HotView Pro mesh management software (ELECTRONIC LICENSE) - HotView Pro mesh management software is licensed version of HotView in a client-server architecture, providing MultiMesh(TM) capability to manage multiple mesh networks, extend mesh scalability with the MeshBridge(TM) and EthernetDirect(TM) features, as well as providing multiuser management and persistent fault and status monitoring via the HotView server management database. License is per 30 nodes managed.
82-5627 3000-9000-DSK
HotView Pro (Disk License)


HotView Pro mesh management software (DISK LICENSE) - HotView Pro mesh management software is licensed version of HotView in a client-server architecture, providing MultiMesh(TM) capability to manage multiple mesh networks, extend mesh scalability with the MeshBridge(TM) and EthernetDirect(TM) features, as well as providing multiuser management and persistent fault and status monitoring via the HotView server management database. License is per 30 nodes managed.

Datasheet HotView Network Management Software

Antennas
Part No. Firetide PN Description
82-8401
4000-1111
2.4 GHz omni directional antenna with 7.5 dBi gain (N-Type connector)
(For HotPoint APs ONLY)
82-5675
AO-024-N
2.4 GHz omni-directional antenna with 8 dBi gain,
1.5 meter LMR400 cable, lightning suppressor with N-type
connector & Aluminum extruded bracket for mast mounting
82-5677
AO-050-N 5.1 to 5.8 GHz omni-directional antenna with 10 dBi gain,
1.5 meter LMR400 cable, lightning suppressor with N-type
connector & Aluminum extruded bracket for mast mounting.
82-5678
AP-024-N
2.4 GHz subscriber panel antenna with 16 dBi gain, 1.5 meter
LMR400 cable, lightning suppressor with N-type connector &
Az/E1 adjustable mount
82-5679
AP-049-N 4.9 to 5.5 GHz subscriber panel antenna with 21 dBi gain,
1.5 meter LMR400 cable, lightning suppressor with N-type
connector & Az/E1 adjustable mount
82-5680
AP-050-N
5.1 to 5.8 GHz subscriber panel antenna with 23 dBi gain,
1.5 meter LMR400 cable, lightning suppressor with N-type
connector & Az/E1adjustable mount
82-5681
AS-024-N
2.4 to 2.7 GHz 90° sector antenna with 15.5 dBi gain,
1.5 meter LMR400 cable, lightning suppressor with N-type
connector & tilt mount
82-5682
AS-049-N
4.9 GHz 90° sector antenna with 16 dBi gain, 1.5 meter LMR400 cable,
lightning suppressor with N-type connector & elevation adjustable mount
82-5683
AS-050-N
5.1 to 5.8 GHz 90° sector antenna with 16 dBi gain, 1.5 meter LMR400 cable, lightning suppressor with N-type connector & elevation adjustable mount
82-5690
CB-015-T
Antenna Cable Assembly, 1.5 meter LMR-400 w/lightning suppressor
82-5691
CB-050-T Antenna Cable Assembly, 5 meter LMR-400 w/lightning suppressor
82-5692
CB-015-N Antenna Cable Assembly, 1.5 meter LMR-400 w/lightning suppressor N-type connector
82-5693
CB-050-N Antenna Cable Assembly, 5 meter LMR-400 w/lightning suppressor N-type connector
82-5688
PO-010-N
6000 series outdoor rated 10 meter North America AC power cable
82-5689
PL-010-N
6000 series outdoor rated 10 meter Light Pole Power Kit
(Lumniaire power interface) AC power cable

Accessories
Part No. Firetide Part No. Description
Cables Assemblies
82-5636 3200-2102 Single Ethernet Transition Cable w/watertight Ethernet connector, 2 meter
82-5637 3200-2103 10 meter Power Cable, Hotport 3200/6200 series, DC to DC
Power Source
82-5688
PO-010-N
6000 series outdoor rated 10 meter North America AC power cable
82-8425
PL-010-N
6000 series outdoor rated 10 meter Light Pole Power Kit
(Lumniaire power interface) AC power cable
82-5640
3200-3002
Light Pole Power Kit (Luminaire power interface), 2m cable
Mounting Solutions
82-8411 MT-6100 HotPort 6100 family indoor mounting kit for wall, ceiling and office panel installation, 10 machine screws
Spares Parts (Replacement Parts)
82-8412 SP-6200-01 6200 series Replacement outdoor sun shield
82-8413 SP-6200-02 6200 series Replacement outdoor clawtooth mounting kit
82-8414 SP-6200-03 6200 series Replacement outdoor 5 meter
North America AC power cable
82-8415 SP-6200-04 6200 series Replacement staging antennas (2.4 & 5, + n-type to sma converter)
82-8416 SP-6100-01 6100 series Replacement indoor Power Supply Desktop Brick 15VDC
82-8417 SP-6100-02 6100 series Replacement indoor 2 meter North America AC power cable
82-5618
3200-9101
HotPort 3200 family mounting kit. 1 Mounting plate, 2 clawteeth clamp, 2 U-bolts, 4 lock washers, 4 nuts.
82-5641 3100-9102 3100 series indoor power supply with 2 meter AC cable
82-5643 3200-9103 Antenna Caps, HotPort 3200 series (2 caps)
82-5644 3200-9104 Ethernet port/ Power port Caps, HotPort 3200 series (3 caps)
82-5645 3200-9105 Sun Shield, HotPort 3200 series
82-5646 3200-9106 Lighting Suppressor, HotPort 3200 series
82-5647 3200-9107 Replacement staging antennas, HotPort 3200, 5 dBi, dual band,
2.4 GHz & 5 GHz
