"The
results show that Telco Systems' T5 Compact outperforms Cisco's Catalyst 2950G-48
convincingly in every test performed"- Click
Here
American Tele Data

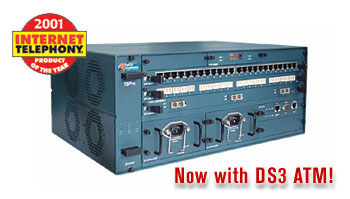

Tele Data supplies T5Pro’s™
multi-layer, multi-service capabilities provide speed and simplicity along with
robust services such as bandwidth management, traffic shaping, security and Quality
of Service (QoS). T5Pro can be configured as a Digital Subscriber Line (DSL) Access
Multiplexer feeding as many as 72 locations with 10 Mbps of symmetrical VDSL.
Its architecture is scalable and easily upgradeable with customers’ needs
for higher bandwidth and integration of their voice, data and video services.
T5Pro’s™
multi-layer, multi-service capabilities provide speed and simplicity along with
robust services such as bandwidth management, traffic shaping, security and Quality
of Service (QoS). T5Pro can be configured as a Digital Subscriber Line (DSL) Access
Multiplexer feeding as many as 72 locations with 10 Mbps of symmetrical VDSL.
Its architecture is scalable and easily upgradeable with customers’ needs
for higher bandwidth and integration of their voice, data and video services.
Modular
Telecom-Grade LAN/MAN/WAN Routing Switch Telecom-Grade features such as
•
NEBS Certified
• CPU Redundancy
• Hot-swappable redundant power
supply drawers
• All modules hot-swap support
10/100/1000, fiber various
fixed & pluggable optics and Bi-Directional & CWDM support
Packet
over SONET/SDH (POS) and ATM modules
RIP, OSPF and BGP4 based routing
4,096
IEEE 802.1q VLANs based on port and subnet
802.1P, ToS and DiffServ Policy
based traffic classification and remarking
Advanced redundancy features including
resilient ports
BiNOS on board
Hardware based Rate Limiting for dynamic
bandwidth allocation from 13Kbps up to 1 Gbps
Layer 2 – 7 switching
Under
12" depth
Transparent LAN services for end-to-end tunneling services
DHCP Relay with option 82 support
DHCP Server with option 82 support
Access
Control Lists for enhanced
"Telco
Systems' T5Pro is a clear leader in the On the Edge sector of the IP telephony
industry.
We're proud to recognize their hard work and innovation with a Product
of the Year Award for 2001."
Rich Tehrani, President of TMC & Group
Editor-In-Chief of Internet Telephony
Chassis
Part Number Description
BTI-0530P BTI-0530P switch platform with 3
line card slots and 3 one port module slots. (Does not include power supplies,
CPU modules, or fan module.)
Power Supplies
Part Number Description
BTI-0530P-ACPS 110/220V AC power supply for BTI-0530P
BTI-0530P-DCPS
-48VDC power supply for BTI-0530P
Accessories
Part Number Description
BTI-0530P-CPU Management CPU module for BTI-0530P
BTI-0530P-FAN Fan module
for BTI-0530P
Note: ** MINIMUM OPERATING CONFIGURATION: CHASSIS + 1 CPU
MODULE + FAN MODULE + 2 POWER SUPPLIES
OC-3c Packet over SONET/SDH
Modules
Part Number Description Connector Distance
BTI-PoS-031-IR
1 port OC-3/STM-1 PoS/SDH Intermediate Reach single-mode (1310 nm) Dual SC 15
km
BTI-PoS-031-LR 1 port OC-3/STM-1 PoS/SDH Long Reach single-mode (1310 nm)
Dual SC 40 km
BTI-PoS-031-SR 1 port OC-3/STM-1 PoS/SDH Short Reach multi-mode
(1310 nm) Dual SC 2 km
OC-12c Packet over SONET/SDH Modules
Part
Number Description Connector Distance
BTI-PoS-124-IR 1 port OC-12/STM-4 PoS/SDH
Intermediate Reach single-mode (1310 nm) Dual SC 15 km
BTI-PoS-124-LR 1 port
OC-12/STM-4 PoS/SDH Long Reach single-mode (1310 nm) Dual SC 40 km
BTI-PoS-124-SR
1 port OC-12/STM-4 PoS/SDH Short Reach multi-mode (1310 nm) Dual SC 500 m
ATM DS-3 Modules
ATM OC-3 Modules
100Mbps Modules
Part Number
Description Connector Distance
BTI-20LC 20 ports 100BaseFX Multi Mode
(1310nm) LC 2km
BTI-20LC-LD 20 ports 100BaseFX Single Mode (1310nm) LC 14km
BTI-20MT 20 ports 100BaseFX Multi Mode (1310nm) MT-RJ 2km
BTI-24TX 24
ports 10/100BaseTX RJ-45 100m
1000Mbps Modules
Part Number Description
Connector Distance
BTI-3GLXP 3 ports 1000BaseLX single-mode (1310nm) Dual
SC 6km
BTI-3GSXP 3 ports 1000BaseSX multi-mode (850nm) Dual SC 550m
BTI-3GSXP-LC
3 ports 1000BaseSX multi-mode (850nm) LC 550m
BTI-3GSXP-MT 3 ports 1000BaseSX
multi-mode (850nm) MT-RJ 550m
GBIC Modules
Part Number Description
Connector Distance
BTI-GBIC-GLX 1 port 1000BaseLX GBIC transceiver 1310nm
Dual SC 6 km
BTI-GBIC-GLX-EX 1 port 1000BaseLX single-mode GBIC transceiver
(1550nm) Dual SC 40km
BTI-GBIC-GLX-SE 1 port 1000BaseLX single-mode GBIC transceiver
(1550nm) Dual SC 70km
BTI-GBIC-GSX 1 port 1000BaseSX Multi Mode GBIC transceiver
(850nm) Dual SC 550m
BTI-GBIC-GT 1 port 1000BaseT GBIC transceiver RJ-45 100m
Software
Part Number Description
BiNOSCenter Elements
Management System for networks
BiNOS-Adv BiNOS + OSPF, multicast routing,
and DiffServ
BiNOS-Pro BiNOS + Traffic Shaping
BiNOS-Pro-Plus BiNOS Adv
+ BiNOS Pro + BGPv4 for T5Pro and T6 only
