American Tele Data is a fiber optic switch supplier that carries a complete line of Fiber Optic Switches, Fiber Optic Switch, Optical Switches, Optical Switch, T1/E1 Fiber Optic Modems, fiber optic modems from several different manufacturers including Telco Systems, RAD,TC Comm, MRV's family of optical switches, and Telco Systems fiber optic switches. Our inside technical staff will assist you in determining which fiber optic switch is best for your application. The TC Comm TC3705 10/100 fiber optic Ethernet Switch which is a low cost and flexible bandwidth solution to efficiently switch the heavy traffic of local workgroups.
The TC 3703 fiber optic switch reduces the need of expensive routers that usually cater to the network backbone. American Tele Data also carries a complete line of Fiber Optic Modems & Multiplexers, Fiber Optic Data/Telephone Multiplexers; Fiber Ethernet Switches, Transceivers & Media Converters and Ethernet/Fiber/RS-232 Telephone Extenders.
Fiber Optic Switches
Fiber Optic Switch RAD FOM 9 ;A low cost, miniature fiber optic modem. Converts V.24, V.35, X.21 and RS-530 to Fiber Optic. Speeds up to 128kbps, synchronous and 115kbps asynchronous. Single or Multi-mode options. AC power Supply
Fiber Optic Switch RAD FOMI-40A high performance, manageable fiber optic modem. Converts V.24, RS-232, V.35, X.21, V.36, RS-449, RS-530, G.703 and UTP to Fiber Optic. Speeds up to 2.048mbps synchronous. Single or Multi-mode options. High Density chassis and cards available. AC or DC power Supply.
Fiber Optic Switch RAD FOMI E1/T1 A high performance, manageable fiber optic modem. Converts E1 or T1 to FiberOptic. Speeds of 1.544mbps or 2.048mbps synchronous. Single or Multi-mode options. High Density chassis and cards available. AC or DC power Supply
Fiber Optic Switch RAD FOMi-E3/T3A high performance,manageable fiber optic modem. Converts E3, T3 and HSSI to Fiber Optic. Speeds of 34.368mbps or 44.736mbps synchronous. Single or Multi-mode options. High Density chassis and cards available. AC or DC power Supply
Fiber Optic Switch RAD OCU -45 A high performance,manageable fiber optic modem. Converts STS-1, E3, or T3 to Fiber Optic. Speeds of 34.368mbps, 44.736mbps or 51.84mbps synchronous. Single Mode. AC or DC power Supply.
Fiber Optic Switch RAD OPTI-3 A high performance, manageable fiber optic modem/mux. Converts (3) DS-3s to a single OC-3 via Fiber Optic. Speeds of 34.368mbps per DS-3 port. Single mode. AC or DC power Supply
Fiber Optic Switch RAD OPTIMUX XL A high performance, manageable fiber optic multiplexer. Converts up to (16) E1's, Data and/or Ethernet over a 34mbps fiber or coax link. Full Redundancy for power and link available. Modular and Non-modular chassis options. Single or Multi-Mode. T1 Model also available. AC or DC power Supply.
Fiber Optic Switch RAD OPTI-6100 A high density Point to Point or SONET fiber optic multiplexer. Supports up to (4) OC-3, (9) T3, (36) Ethernet or (84) T1s.GR-253 Compliant. AC or DC power Supply. Formerly the OPTI-MX/SMX
Fiber Optic Switch: RAD R-STM-1EA high density fiber optic (STM-1) multiplexer Supports up to (63) E1, (3) E3 or (3) T3 ports over a STM-1 interface. Single Mode. AC or DC power Supply
Fiber Optic Switch: RAD F-TEL-A compact analog voice to fiber optic converter.
Converts a single analog FXO or FXS voice port to fiber optic. Single or Multi-mode. AC or DC power Supply
Fiber Optic Switch: RAD Lilomux 2100 A high density chassis analog voice to fiber optic converter. Converts up to 186 voice ports to fiber optic. Supports Data. Single or Multi-mode. AC or DC power Supply.
Fiber Optic Switches- Telco Systems EdgeGate CPE family's flexible architecture is the ideal solution for service providers delivering fiber-fed triple play (voice, video, and data) to their residential, small office/home office (SOHO), and enterprise customers. The line offers a wide variety of voice, Ethernet LAN, and uplink options enabling service providers to deliver the options that suit their customers' application, bandwidth, and budget needs.
Optical Switches- Optiswitch Family- Modular Ethernet Switching
The OptiSwitch family is designed to meet the needs of high-density fiber optic switching applications. With a variety of chassis styles and over sixty modules, the OptiSwitch family provides an exceptional level of versatility. It supports both high-end switching and IP routing functionality and is ideal for broadband data communication service.
OptiSwitch-F-Fixed Form Fiber Optic Switch Fixed-Form Switching and Routing
Fixed-form switches and routers provide a fixed number of Ethernet ports to which you can connect workstations and other network devices, such as servers, routers, and other switches. Some of these switches also allow plug-in uplink modules. Many of the product offerings support MRV’s wide range of optical plug-in modules for maximal fiber-optic flexibility. The switches can be deployed as desktop-to-backbone switches, aggregating 10BASE-T, 100BASE-TX, and Gigabit Ethernet traffic from other network devices.
OptiSwitch-M Modular IP/MPLS Ethernet Switch/ Routers
The OptiSwitch-M provides a wire speed IP routing solution without sacrificing any of the features required to build a scalable network. This is achieved by using a powerful hardware engine with network processors implemented on every port. These custom programmable processors are highly efficient and capable of analyzing and modifying any part of a frame at wire speeds. Additionally, the network processor can classify and prioritize each frame and enable per flow decisions such as: scheduling, routing, forwarding, rate limiting, and filtering.
OptiSwitch-Z- Linux IP Switches Modular IP/Ethernet Switch/Routers
The OptiSwitch-Z products are modular Layer 2/3/4 Switch/Routers, optimized for scalability, performance, and multi-processing Linux IP services. The OS-Z family provides mid-sized to large systems featuring up to 16 blade slots, 256Gbps of switching capacity, 160Mpps throughput, and up to 32 Linux application processors.
4 Ethernet 10/100-Base Auto-Sensing UTP Ports-1 Fiber Optic 100Base-FX Port -Distances up to 80km-Multimode or Single Mode (1300/1550nm)-Full or Half-Duplex Operation- Hardened Temperature (optional), -40C to 80C -Exceeds Pertinent NEMA & Caltrans Traffic Control Specifications- Rackmount or Stand Alone
6 Ethernet 10/100Base-T Auto-Sensing UTP Ports
1 or 2 Fiber Optic 100Base-FX Ports
Optional 1-Fiber/WDM Version
Optional Rate Limiting on Each Port
Distances up to 80km
Multimode or Single Mode (1300/1550nm)
Full or Half-Duplex Operation
Industrial Hardened, -40C to 80C (optional)
Exceeds Pertinent NEMA & Caltrans Traffic Control Specifications
19" Rackmount or Standalone

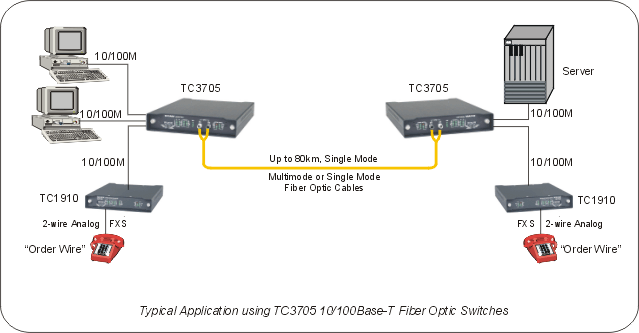

The TC3705 10/100 Ethernet Switch is a low cost and flexible bandwidth solution to efficiently handle the heavy traffic of local workgroups - reducing the need of expensive routers that usually cater to the network backbone.
