Multi-layer Swithes- Routing Switch- Managed Switch- Ethernet Routing Switches-10/100/1000 Nebs Compliant Switches

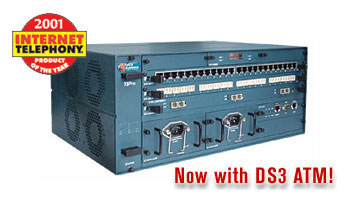

American Tele Data Tele Data carries the Telco Systems’ T6Pro multi-layer, multi-service Metro-Core routing switch and introduces the state-of-the-art AdvancedTCA™ standardized platform architecture, with uncompromising security features, superb QoS, MPLS awareness, IPv6 dual stack support, and many more capabilities in a single 12U platform. The T6Pro’s NEBS compliant architecture is optimized for the connectivity requirements of signaling and media gateways. Non-blocking connectivity of 10/100/1000M and 10Gigabit Ethernet, POS, ATM and EOS services delivers a flexible, service-rich platform with uncompromising carrier-grade reliability. Redundant CPU modules, switching modules, and power supplies guarantee maximum up time and 99.9999% availability.

T5Pro’s™ multi-layer, multi-service capabilities provide speed and simplicity along with robust services such as bandwidth management, traffic shaping, security and Quality of Service (QoS). T5Pro can be configured as a Digital Subscriber Line (DSL) Access Multiplexer feeding as many as 72 locations with 10 Mbps of symmetrical VDSL. Its architecture is scalable and easily upgradeable with customers’ needs for higher bandwidth and integration of their voice, data and video services.

T5 Routing Switch deliver high-performance switching and multi-layer services for today’s enterprise and carrier environments. T5 Routing Switch allows for 64 Fast Ethernet or 8 Gigabit Ethernet ports.

T4 Routing Switch deliver high-performance switching and multi-layer services for today’s enterprise and carrier environments.

T5 Modular managed Switch-these modular platforms offer service providers cost-effective high-speed IP, VDSL, and VoIP solutions.

Telco Systems’ T6 multi-layer IP switch delivers high-performance packet classification, switching, routing and transport for service providers and private enterprise.

T5Pro LAN/MAN/WAN Routing Switch T5Pro’s™ multi-layer, multi-service capabilities provide speed and simplicity along with robust services such as bandwidth management, traffic shaping, security and Quality of Service (QoS).

Ultra-Compact High-Density 10/100/1000 Ethernet Routing Switch-Telco System's T5 Compact 10/100/1000 Ethernet Routing Switch provides high performance in a super-compact, super-efficient size.

Ultra-Compact High-Density Gigabit Ethernet Aggregation/Distribution Routing SwitchBATM/Telco Systems' T5 Compact Gigabit Ethernet Routing Switch provides an optimal
solution for Gigabit Ethernet Intelligent Layer 3 Aggregation and Distribution services

Ultra-Compact High-Density Optical Fast Ethernet Concentrating Residential
Access and FTTH Routing Switch BATM/Telco System's T5 Compact optical Fast Ethernet routing switch provides an optimal solution for mid and long distance intelligent Layer 3 broadband services.

Cost-Effectively Manages TL1 Ethernet-Based Network Elements T5 Compact™ Target Identifier (TID) switch offers service providers a cost-effective solution for aggregation and management of up to 480 Translation Language 1 (TL1) network elements (NE) through a single IP address.

Carrier-Class Optimized Metro-Core Routing Switch

Telco Systems’ T6Pro multi-layer, multi-service Metro-Core routing switch introduces the
state-of-the-art AdvancedTCA™ standardized platform architecture, with uncompromising
security features, superb QoS, MPLS awareness, IPv6 dual stack support, and many more
capabilities in a single 12U platform.

Embedded Management Intelligence - at every level of management
- at every point in the network The BATM InterNetworking OS – BiNOS –embeds management intelligence in all BATM/Telco Systems hardware platforms. From the troubleshooter patching into a unit in the field, to the manager supervising the network from a central console, BiNOS supports administrators with performance information and configuration tools. BiNOS makes network management easy and intuitive.



Multi Service Access
VoIP
Channel Banks
T1/E1 Electrical-to-Optical Converters
Frame Relay
Integrated Access
Mini DCS
Multiplexers
FTTH
Battery Backup

.

Telco T- 5 Compact Switch

"The results show that Telco Systems' T5 Compact outperforms Cisco's Catalyst 2950G-48 convincingly in every test performed"- Click Here

Cost-effective, high-performance, ultra-compact IP solution

NEBS Compliant
Dense 10/100 Mbps copper configuration provides high capacity in a small space
Choice of fiber interfaces for uplink
Cost-effective port trunking capabilities
Non-blocking architecture provides maximum data throughput



Standards

IEEE 802.1d Spanning Tree
IEEE 802.1p Priority Queuing
IEEE 802.1Q VLAN tagging
IEEE 802.1w Rapid Spanning Tree
IEEE 802.3x Flow Control
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3z Gigabit Ethernet
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 Telnet Client &
RFC 951 BootP
RFC 1112 IGMP
RFC 1122 Host Requirements
RFC 1305 NTP
RFC 1542 Bootstrap Extensions
RFC 1866 HTML
RFC 2068 HTTP
RFC 2131 BootP/DHCP Relay
RFC 2138 RADIUS
RFC 2474 DiffServ Precedence
RFC 2598 DiffServ Expedited Forwarding
GMRP
GVRP
Syslog
SSH2
Interfaces:
10/100BaseT/TX
Connectors: RJ-45
Auto-Negotiation
Transmission: Full/Half-Duplex
Range: 100 m
10/100/1000BaseT
Connectors: RJ-45
Auto-Negotiation
Transmission: Full/Half-Duplex
Range: 100 m
1000BaseSX
Connectors: LC, MT-RJ
Transmission: Full Duplex
Optical Budget: 9dB
Range: 220m for 62.5/125µ, 850nm
550m for 50/125µ, 850nm
1000BaseLX
Connectors: LC
Transmission: Full Duplex
Optical Budget: 9dB
Range: 6km for 9/125µ, 1310nm
Switching Characteristics
Technology: ASIC based parallel
Store-and-Forward
Bridging: IEEE 802.1d Spanning Tree Algorithm
Address Table: 8K MAC Addresses
Forwarding Rate: Up to 148,800 pps/ 100 Mbps ports
Up to 1,488,000 pps / 1 Gbps ports
Flow Control: 802.3x for full duplex and back-pressure for half duplex transmission
Management
SNMP Client
MIBs: RFC 1157 SNMP,
RFC 1213 MIB II,
RFC 1493 Bridge MIB,
RFC 1757 RMON,
BATM Enterprise MIB
Telnet: Telnet management
Internet: Java based Web management
Interface: In-Band
